1. Technical Data

2. Lights

3. Insert batteries

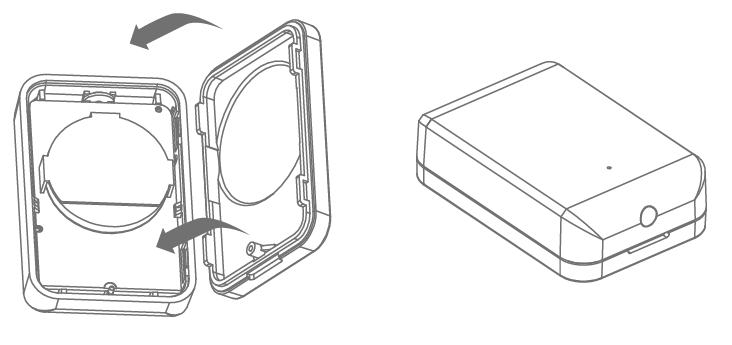

Remove the lid.

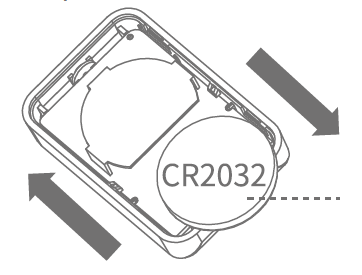

Insert the supplied battery (CR2032) and close the lid.

4. Mounting

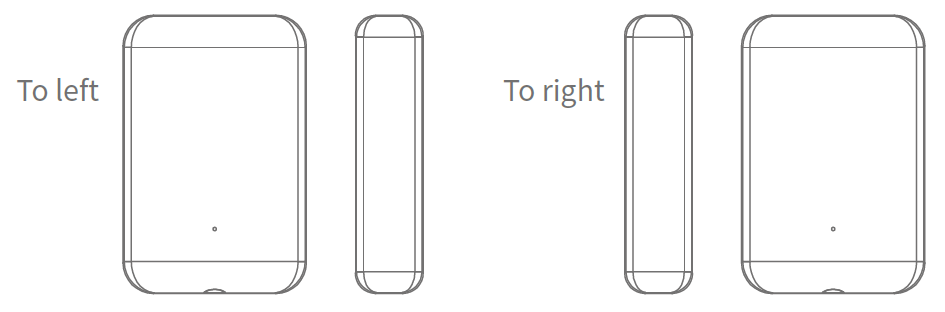

Select the opening direction of your door.

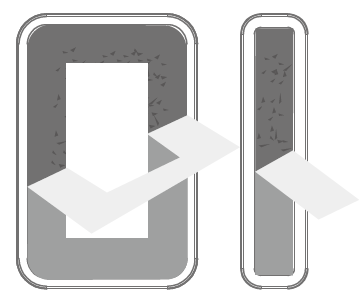

Remove the protective film from the adhesive on the back of the door sensor.

Clean the surface on which the door sensor is to be mounted and then stick it to the desired surface.

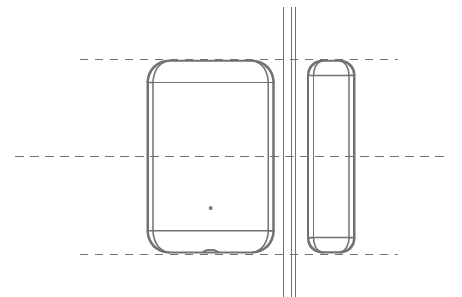

Note: Please note that the maximum induction distance of the door sensor is 22 mm. This means that the two parts of the door sensor must not be more than 22 mm apart.

5. App configuration

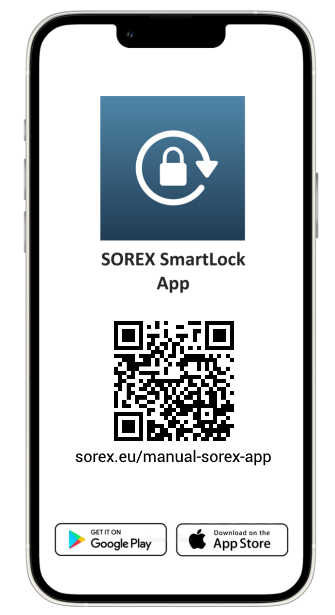

Instructions for the SOREX SmartLock app on how to add and configure the door sensor in the app can
be found in the SOREX Helpcenter. Follow the link or scan the QR code below.

6. Reset to factory settings

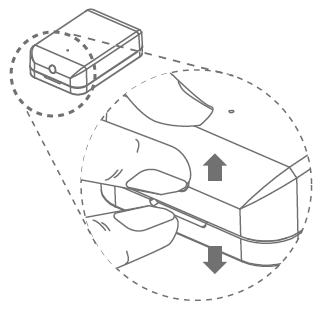

Press the reset button on the door sensor for 10 seconds.
After the light lights up for 1 second, the device is reseted to the factory settings.
