SOREX smart Unilock Mini
Operating Manual











www.sorex.eu



​​1. Scope of Delivery

​2. Technical Data

​2.1 Fingerprint Sensor Data

​3. Product Dimensions

​4. Milling Plan

​5. Installation / Wiring

​5.1 Installation

​5.2 Wiring of Relay (Indoor Unit) with Door Opener

​5.2.1  Other Wiring Variants (Motorized Locks)

​5.3 Completion of Installation

​6. Reset to Factory Settings

​7. Smartphone App ​







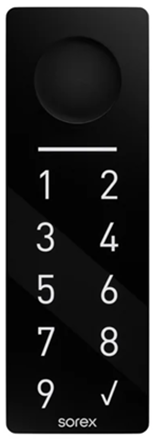

1. Scope of Delivery

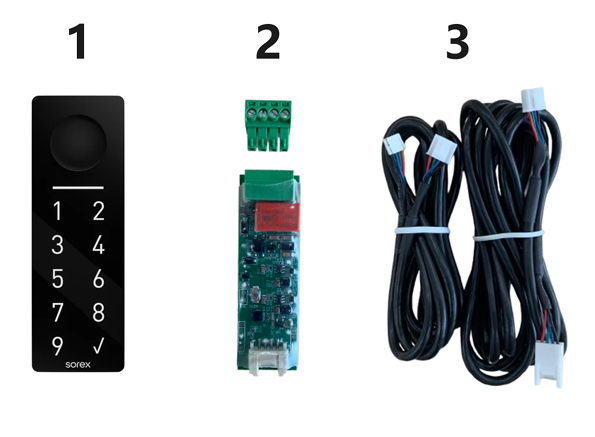

The package includes:

  1. Unilock Mini Outdoor Unit
  2. Unilock Indoor/Relay Unit and a plug-in screw terminal for connecting with an electric door opener and power supply
  3. Connecting cable between the outdoor and indoor unit
  4. (Optional) 3-meter extension cable



2. Technical Data



Article Number WRULM10111
EAN 0093149093521
Special Feature externes Relaiskabel (Inneneinheit) für Sabotageschutz
Encryption (Indoor and Outdoor Unit) AES 128Bit
Frequency 2.4 GHz
IP Rating IP66 (if waterproof glued)
Temperature Range -30° bis 60°C
Power Supply 12/24V DC  0.5A
Effective Standby Current Consumption ~600 μA
Relay Maximum  1A/30V Schaltstrom/Schaltspannung
Compatibility

Compatible with all common motorized locks (KFV, ROTO, GU, Fuhr, Wilka, Dom, …)


Storage of Access Media Permanent (even during power failure)
Number of Access Media

100 Fingerprints
150 Numeric Codes
1000 RFID Media
5 Remote Controls
Unlimited eKeys


Dimensions Article Width: 24 mm
 Article Length: 77.5 mm
Article Height: 16 mm
Weight 142 g



2.1 Fingerprint Sensor Data

Lifetime ~100.000 Scans
FAR (False Acceptance Rate)  <0,001%
FRR (False Rejection Rate) <1%





3. Product Dimensions

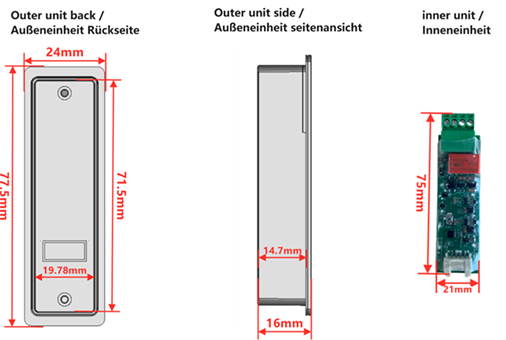

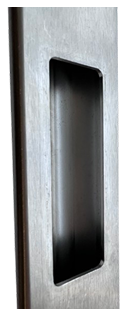

4. Milling Plan

(Dimensions in mm – not to scale)

Overall Depth: 16 mm

Installation Depth: 14.7 mm



5. Installation / Wiring

5.1 Installation

  • First, mill a hole at the location where the device is to be installed.

  • Next, thread the cable through the milled hole.
  • Then, connect the cable to the Unilock Mini Outdoor Unit.
  • In the interior, connect the other end of the connecting cable to the Unilock Indoor Unit.
  • Ensure that the indoor unit is never accessible from the outside (for example, by pulling the cable out).

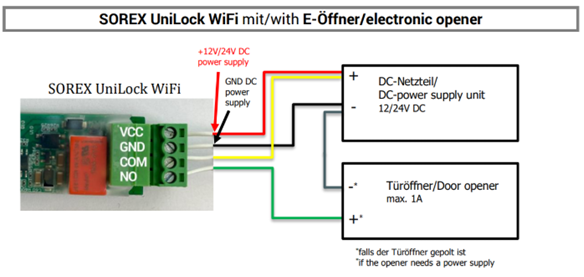

5.2 Wiring of Relay (Indoor Unit) with Door Opener

You can now wire the indoor unit (relay) to the door opener and the power supply

WARNING:
Perform an electrical test and verify that the device is functioning. Check that the Unilock is supplied with power and conduct a test opening. Ensure that the door opener is activated.

Note:
If the device is in its factory state, you can enter the numeric code “123456” on the keypad and confirm it by pressing the “checkmark/bell” to conduct a test opening. This general code verifies the overall functionality of the Unilock.

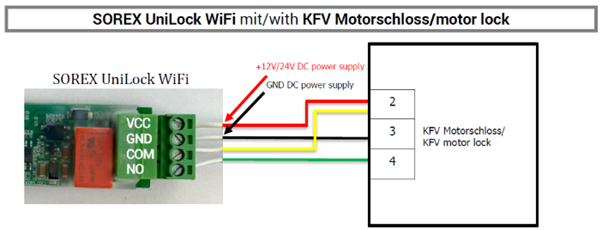

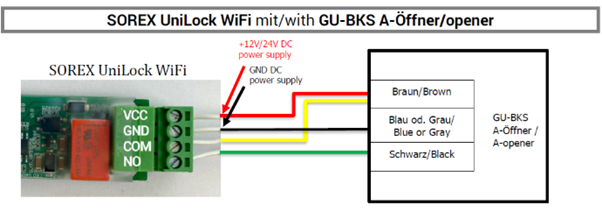

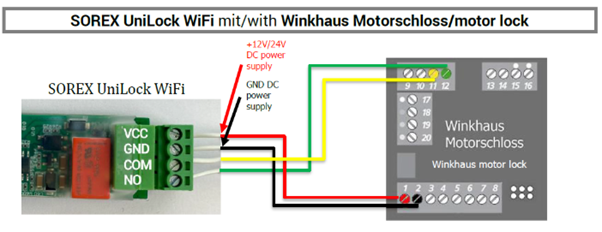

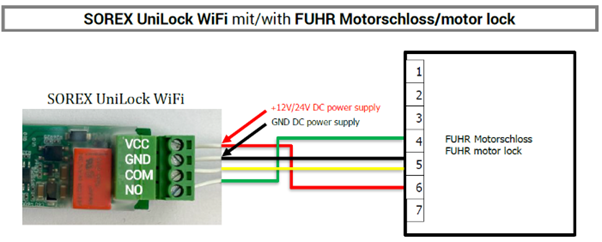

5.2.1  Other Wiring Variants (Motorized Locks)



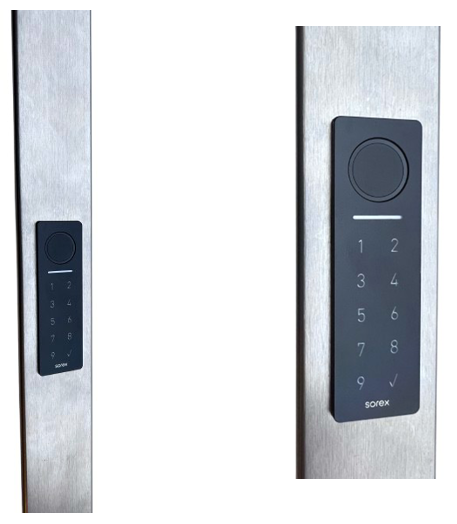

5.3 Completion of Installation

Once the preceding tests are successful, you can complete the installation.

Remove the protective film from the adhesive tape on the Unilock and adhere it to the intended mounting location.

Additionally, after mounting the Unilock, check that the adhesion is waterproof. You can test this by carefully running water over the device and then checking to see if water has penetrated behind it. If water is detected, press the device firmly against the mounting surface again and allow the adhesive more time to set before testing with water again.

If water still passes behind the device during a subsequent test, you may additionally apply a silicone seal around the glass plate.





6. Reset to Factory Settings

You can reset the SOREX smart Unilock Mini in one of two ways:

  1. Via the App:
    Delete the Unilock from the app (select the Unilock -> Settings -> “Delete”). You must be within range of the device.

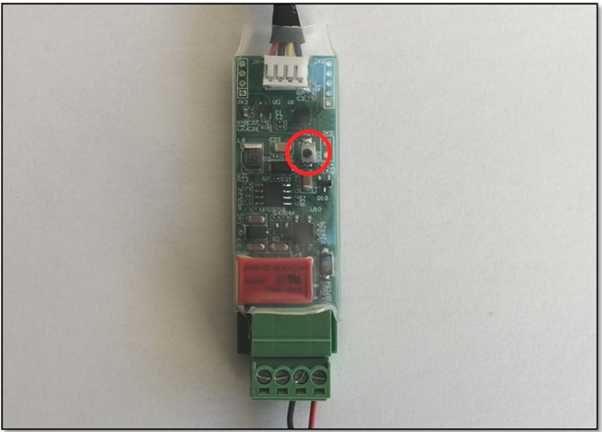

  2. Via the Reset Button:
    Press the reset button on the indoor unit for about 3 seconds or until two quick signal tones are emitted.



7. Smartphone App

The SOREX smart Unilock Mini is managed and controlled through our SOREX SmartLock app.

Search for “SOREX Smart Lock” in the Google Play Store or Apple App Store and install the app.
