SOREX smart Unilock+
Operating Manual







www.sorex.eu

​​

1. Scope of Delivery

​2. Technical Data

​2.1 Fingerprint Sensor Data

​2.2 Installed Camera Lens Data

​3. Product Dimensions

​4. Milling Plan

​5. Installation / Wiring

​5.1 Installation

​5.2 Wiring Relay (Indoor Unit) with Door Opener

​5.2.1 Other Wiring Variants (Motorized Locks)

​5.3 Completion of Installation

​6. Reset to Factory Settings

​7. Smartphone App ​

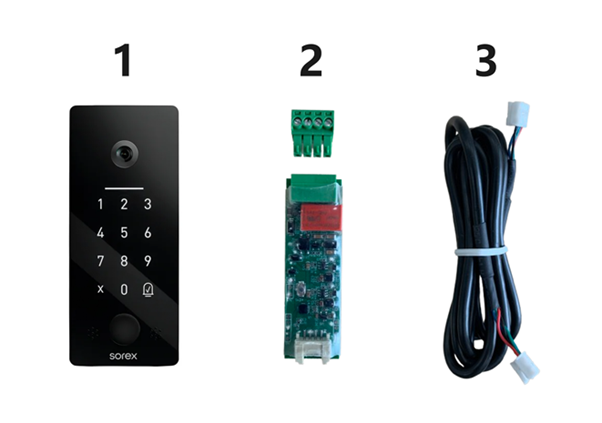

1. Scope of Delivery

The package includes:

  1. Unilock+ Outdoor Unit
  2. Unilock Indoor/Relay Unit and plug-in screw terminal for connecting with an electric door opener and power supply
  3. Connecting cable between the outdoor and indoor unit
  4. (Optional) 3 m extension cable





2. Technical Data

Article Number WRUNI31111
EAN 0093149093859
Special Features External relay cable (indoor unit) for tamper protection
Integrated Wi-Fi module
Intercom
Camera
Encryption (Indoor and Outdoor Unit) AES 128Bit
Frequency 2.4 GHz
IP Rating IP66  (if waterproof glued)
Temperature Range -30° to 60°C
Power Supply 12/24V DC  0.5A
Effective Standby Current Consumption  3.31mA / 12V DC
Relay Maximum 1A / 30V (switching current/switching voltage)
Compatibility

Compatible with all common motorized locks (KFV, ROTO, GU, Fuhr, Wilka, Dom, …)


Storage of Access Media Permanent (even during a power failure)
Number of Access Media

100 Fingerprints
150 Numeric Codes
1000 RFID Media
5 Remote Controls
Unlimited eKeys


Dimensions Article Width: 55.7 mm
Article Length: 132.4 mm
Article Height: 20.4 mm
Weight Total Weight: 210 g



2.1 Fingerprint Sensor Data

Lifetime ~100.000 Scans
FAR (False Acceptance Rate)  <0,001%
FRR (False Rejection Rate) <1%



2.2 Installed Camera Lens Data

 Sensor Type

 2-megapixel High-Definition CMOS Sensor
Color (Black): 0.1Lux @ F1.2
Color (White): 0.01Lux @ F1.2


 Image Output: High Definition: 1960 x 1080 @ 12 fps; Smooth: 640 x 360 @ 25 fps
 Lens High Definition security mirror lens, 138° wide angle, height 13 ± 0.2 mm
Additional Feature Supports Day/Night conversion mode with IR-CUT

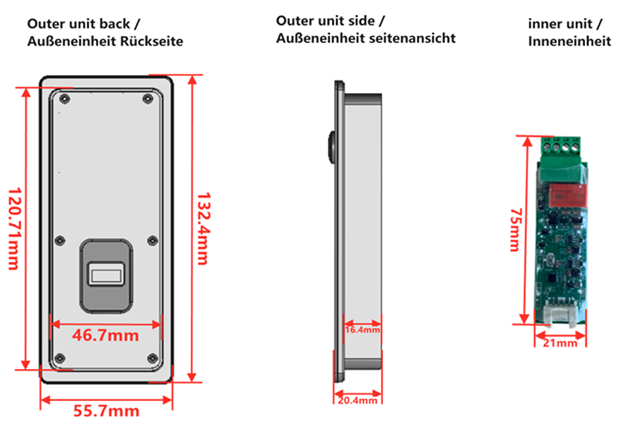

3. Product Dimensions

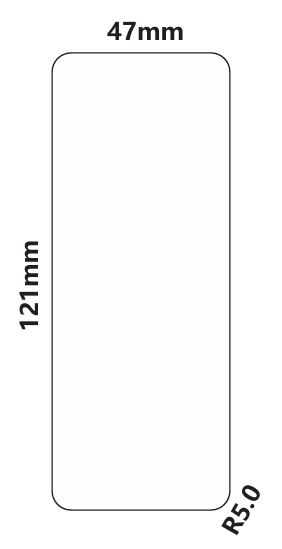

4. Milling Plan

(Dimensions in mm – not to scale)

Overall Depth: 20.4 mm

Installation Depth: 16.4 mm





5. Installation / Wiring

5.1 Installation

  • First, mill a hole at the mounting location in the wall or on the door leaf.

  • Next, thread the cable through the milled hole.

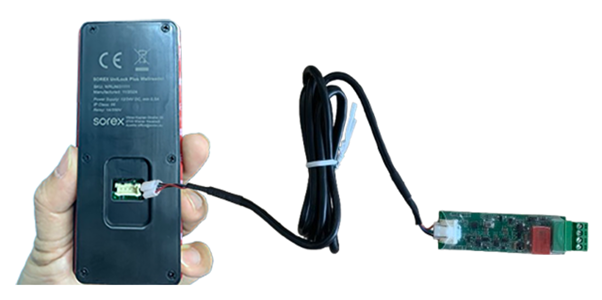

  • Then, connect the cable to the Unilock Outdoor Unit.
  • In the interior, connect the other end of the connecting cable to the Unilock Indoor Unit.
  • Ensure that the indoor unit is never accessible from the outside (e.g., by pulling out the cable).

5.2 Wiring Relay (Indoor Unit) with Door Opener

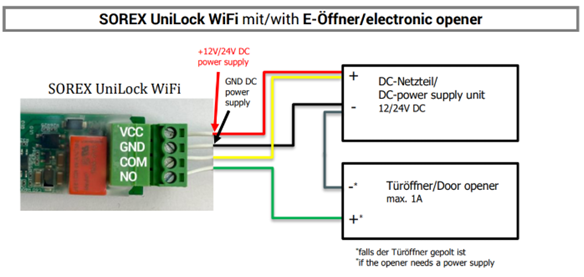

You can now wire the indoor unit (relay) to the door opener and power supply.

WARNING:
Perform an electrical test and verify that the device is functioning. Check that the Unilock is supplied with power and carry out a test opening. Verify that the door opener releases as intended.

Note:
If the device is in its factory state, you can enter the numeric code “123456” on the keypad and confirm it using the “checkmark/bell” symbol to perform a test opening. This general code tests the overall functionality of the Unilock.

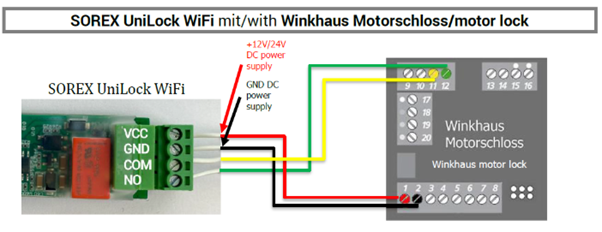

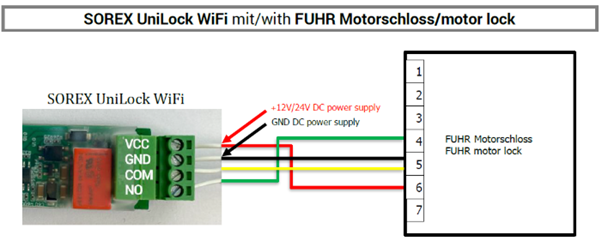

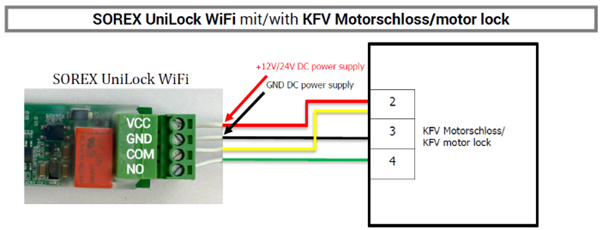

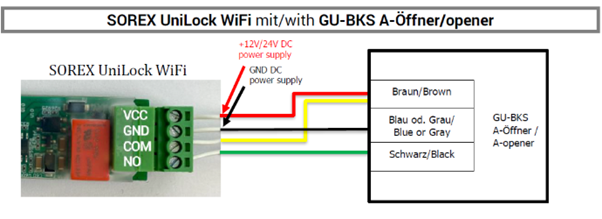

5.2.1 Other Wiring Variants (Motorized Locks)



5.3 Completion of Installation

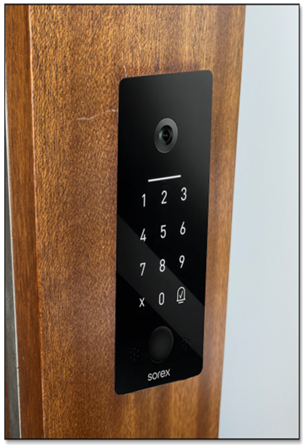

If the previous tests are successful, you can now complete the installation.

Remove the protective film from the adhesive tape on the Unilock and stick it to the mounting location.

Additionally, after affixing the Unilock, make sure to test that the adhesion is waterproof. You can test this by carefully running water over the device and then checking whether any water has penetrated behind it. Should water be observed, press the device firmly against the mounting surface again and allow the adhesive additional time to set before re-testing with water.

If water is still detected behind the device after a subsequent test, you may additionally apply a silicone seal around the glass plate.



6. Reset to Factory Settings

You can reset the SOREX smart Unilock+ in one of two ways:

  1. Via the App:
    Delete the Unilock from the app (select the Unilock -> Settings -> “Delete”). You must be in range of the device to do this.

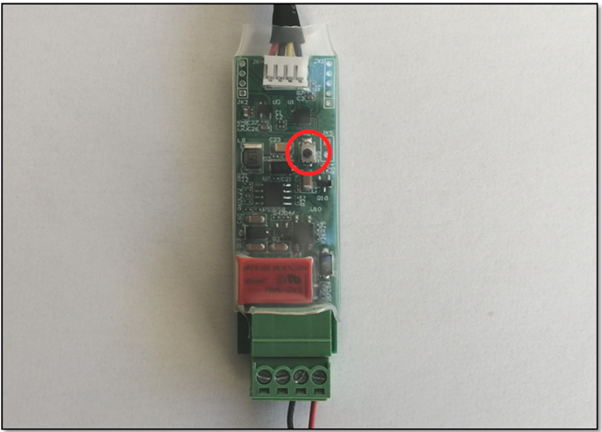

  2. Via the Reset Button:
    Press the reset button on the indoor unit for about 3 seconds or until two quick signal tones are emitted.

7. Smartphone App

The SOREX smart Unilock+ is managed and controlled using our app, SOREX Smart Lock.

Search for the app “SOREX Smart Lock” in the Google Play Store or Apple App Store and install it.
