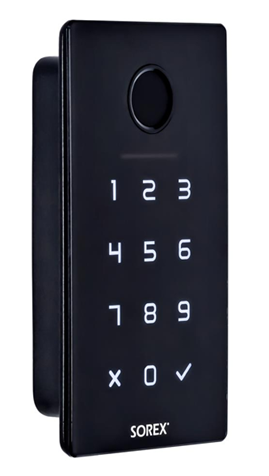

SOREX smart Unilock 2.0
Operating Manual
2. Technical specifications
2.1 Fingerprint sensor data
3. Product dimensions
4. Milling plan
5. Mounting / Wiring
5.1 Mounting surface-mounted box (optionally available)
5.1.1 Scope of Delivery
5.1.2 Assembly
5.2 Mounting flush-mounted box (optionally available)
5.2.1 Masonry Installation
5.2.2 Cavity wall mounting
5.3 Installation without surface-mounted/flush-mounted box
5.4 Wiring relay (indoor unit) with door opener
5.4.1 Other Cabling Variants (Motor Locks)
5.5 Completing the assembly
6. Factory reset

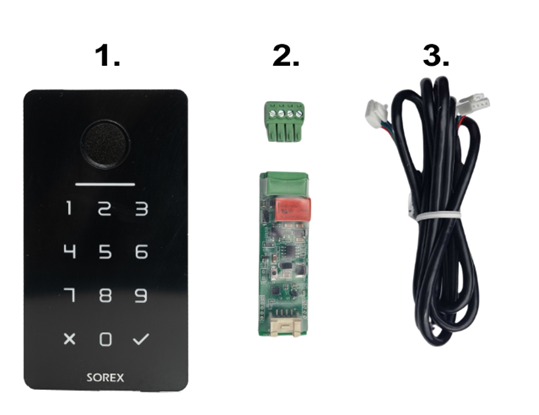

1. Scope of Delivery
The package includes:
- Unilock outdoor unit
- Unilock indoor/relay unit and plug-in screw clamp for connecting with an electric door opener and power supply
- Connecting cable between the outdoor and indoor units
- (Optional) 3 m extension cable
2. Technical specifications
Article Number | DO502000 |
EAN | 0093149093880 |
Special Feature | External relay cable (indoor unit) for tamper protection |
Encryption (Indoor and Outdoor Unit) | AES 128Bit |
Frequency | 2.4 GHz |
IP Protection Class | IP66 (when waterproof glued) |
Temperature Range | -30° to 60°C |
Power Supply | 12/24V DC 0.5A |
Effective Standby Current Consumption | ~600 μA |
Relay | 1 A / 30 V switching current / switching voltage |
Compatibility |
Compatible with all common motorized locks (KFV, ROTO, GU, Fuhr, Wilka, Dom, …)
|
Storage of Access Media | Permanent (retains data even in the event of a power outage) |
Number of Access Media |
100 Fingerprints
|
Size |
Article Width: 55 mm Article Length: 100 mm Article Height: 20 mm |
Gewicht |
Total Article Weight: 205 g Net Weight (Unilock): 69 g Unilock including External Relay Unit + Screw Clamp: 121 g |
2.1 Fingerprint Sensor Data
Lifespan | ~100.000 Scans |
FAR (False Acceptance Rate) | <0,001% |
FRR (False Rejection Rate) | <1% |

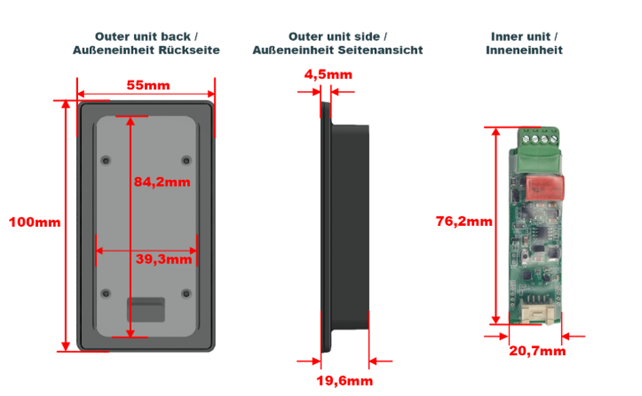

3. Product Dimensions

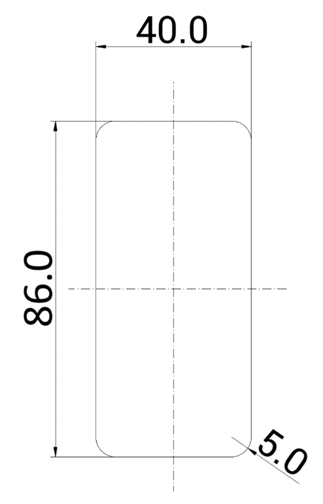

4. Milling Plan
(Dimensions in mm – not to scale)
Overall Depth: 19.6 mm
Installation Depth: 15.1 mm
5. Installation / Wiring
5.1 Installation of Surface-Mounted Box (optional)
5.1.1 Scope of Delivery
The scope of delivery includes:
- Front bezel with a cut-out for the SOREX smart Unilock 2.0
- Black rear bezel with cut-out (black)
- Sealing frame (white)
- Cable sealing (white)
5.1.2 Installation
Step 1: Run the connection cable of the SOREX smart Unilock 2.0 through the wall.
Step 2: Plug the inner part of the cable into the Unilock indoor unit.
Step 3: Place the cable sealing over the cut-out of the rear bezel. (A cut-out for the cable must be made in the bottom middle area of the sealing.)
Step 4: Thread the connection cable through the cut-out in the cable sealing and then through the opening in the front plate. Afterwards, reseal the cut-out in the sealing with silicone.
Step 5: Secure the sealing frame onto the rear bezel.
Step 6: Connect the cable to the Unilock outdoor unit. Test the device and the wiring once more before completing the installation.
Step 7: Attach the rear bezel to the wall using four appropriate screws. It is recommended to seal the screw holes with silicone.
Step 8: Place the front bezel onto the rear bezel.
Step 9: Adhere the SOREX smart Unilock 2.0 to the front bezel using the adhesive strip.
Step 10: Additionally, seal the SOREX smart Unilock 2.0 with a silicone joint around the glass plate.
5.2 Installation of Flush-Mounted Box (optional)
Note: For the masonry installation of the Unilock flush-mounted box, we additionally recommend the flush-mounted installation box E2 (2892 00).

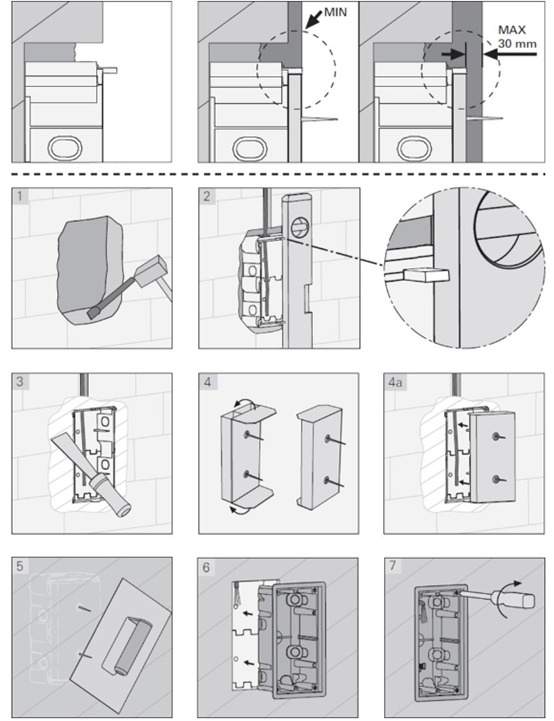

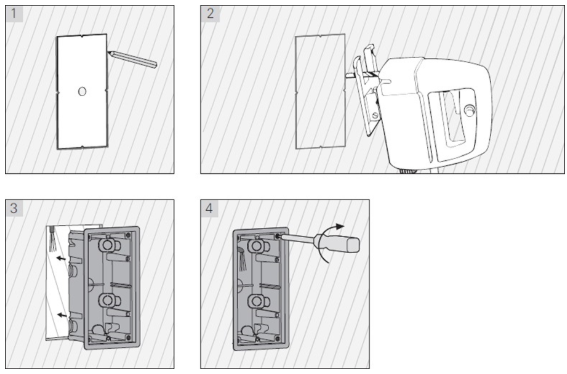

5.2.1 Masonry Installation
5.2.2 Cavity Wall Installation

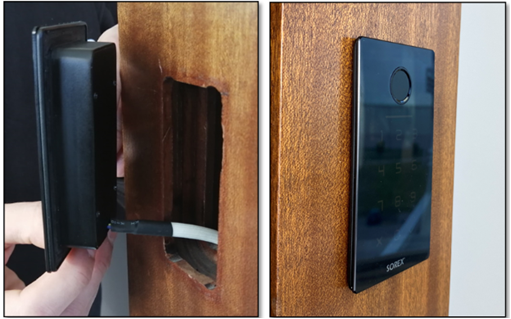

5.3 Installation Without Surface/Flush-Mounted Box

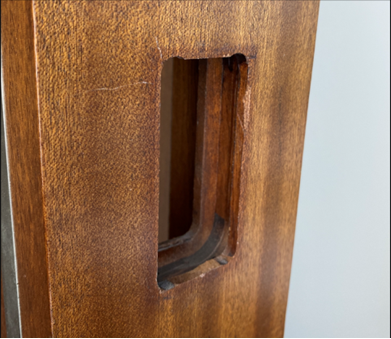

- First, mill a hole in the wall or on the door leaf at the location where the device is to be installed..
- Thread the cable through the milled hole.

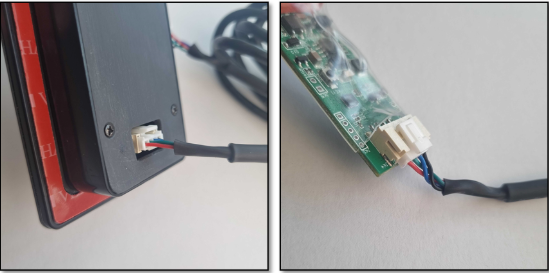

- Connect the cable to the Unilock outdoor unit.
- On the indoor side, connect the other end of the connection cable to the Unilock indoor unit.
- Ensure that the indoor unit is never accessible from the outside (for example, by pulling the cable out).

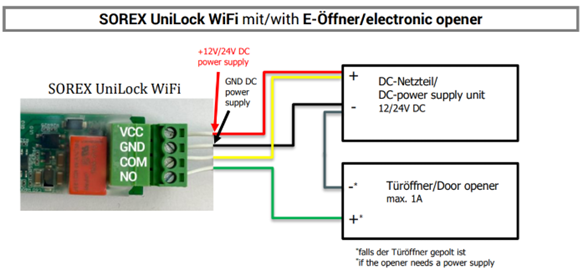

5.4 Wiring of Relay (Indoor Unit) with Door Opener
You can now wire the indoor unit (relay) with the door opener and the power supply.
WARNING: It is essential to perform an electrical test at this point to verify that the device is functioning. Check that the Unilock is powered and perform a test opening. Ensure that the door opener is activated.
Note: If the device is in its factory state, you can enter the numeric code “123456” on the keypad and confirm it with the checkmark to perform a test opening. This general code tests the overall functionality of the Unilock.

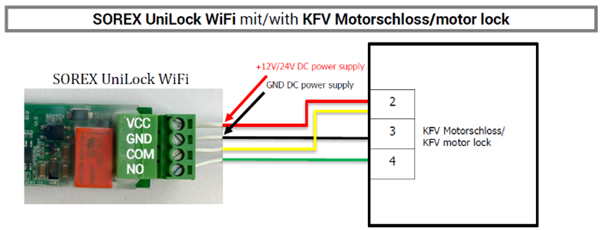

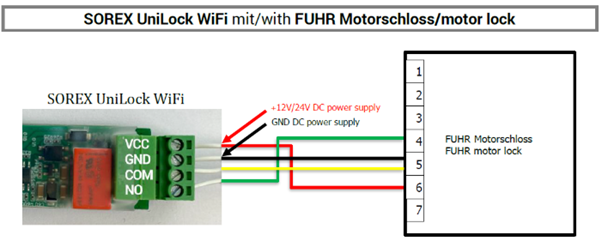

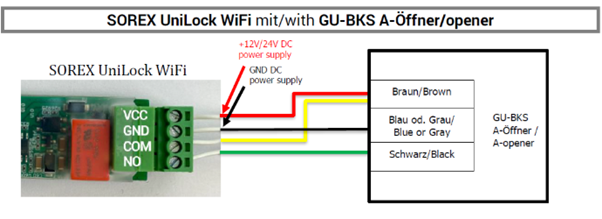

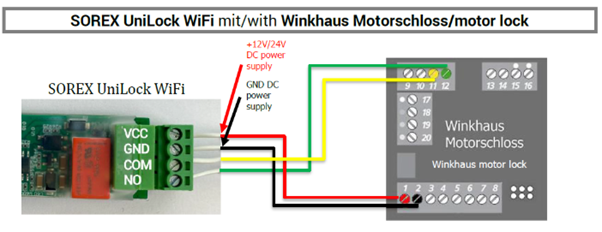

5.4.1 Other Wiring Variants (Motorized Locks)
5.5 Completing the Installation
If the previous tests have been successful, you can now complete the installation:
Remove the protective film from the adhesive strip on the Unilock and adhere it to the desired installation location.
- After attaching the Unilock, check that the bond is waterproof.
To test this, carefully run water over the device and then check if any water has penetrated behind it.
If water is detected, press the device firmly against the installation surface again and allow the adhesive additional time to set before performing another water test. - If water still gets behind the device during a subsequent water test, apply a silicone sealant around the glass plate.
6. Reset to Factory Settings
The SOREX smart Unilock 2.0 can be reset in two ways:
- Via the App: Delete the Unilock from the app (select Unilock -> Settings -> “Delete”). You must be within range of the device.

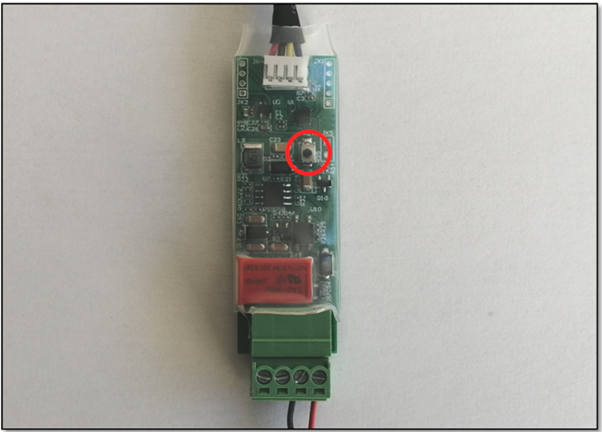

- Using the Reset Button: Press the Reset Button on the indoor unit for approximately 3 seconds or until two quick beeps are emitted consecutively.
7. Smartphone App

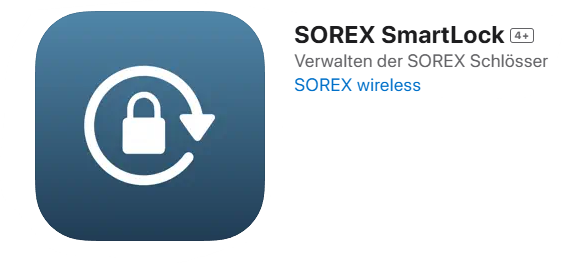

The SOREX smart Unilock 2.0 is managed and controlled via our app “SOREX Smart Lock.”
Search for the “SOREX Smart Lock” app in the Google Play Store or the Apple App Store and install it.
