SOREX

codepad max

User Manual

Contents

1. Package Contents

2. Technical Specifications

3. Installing the Battery

4. Initial Setup

4.1 Activating Configuration Mode

4.2 Connecting the Keyboard

4.3 Creating a Passcode

4.4 Medium

4.5 Learning Fingerprint

4.6 Deleting Keyboard

5. Resetting

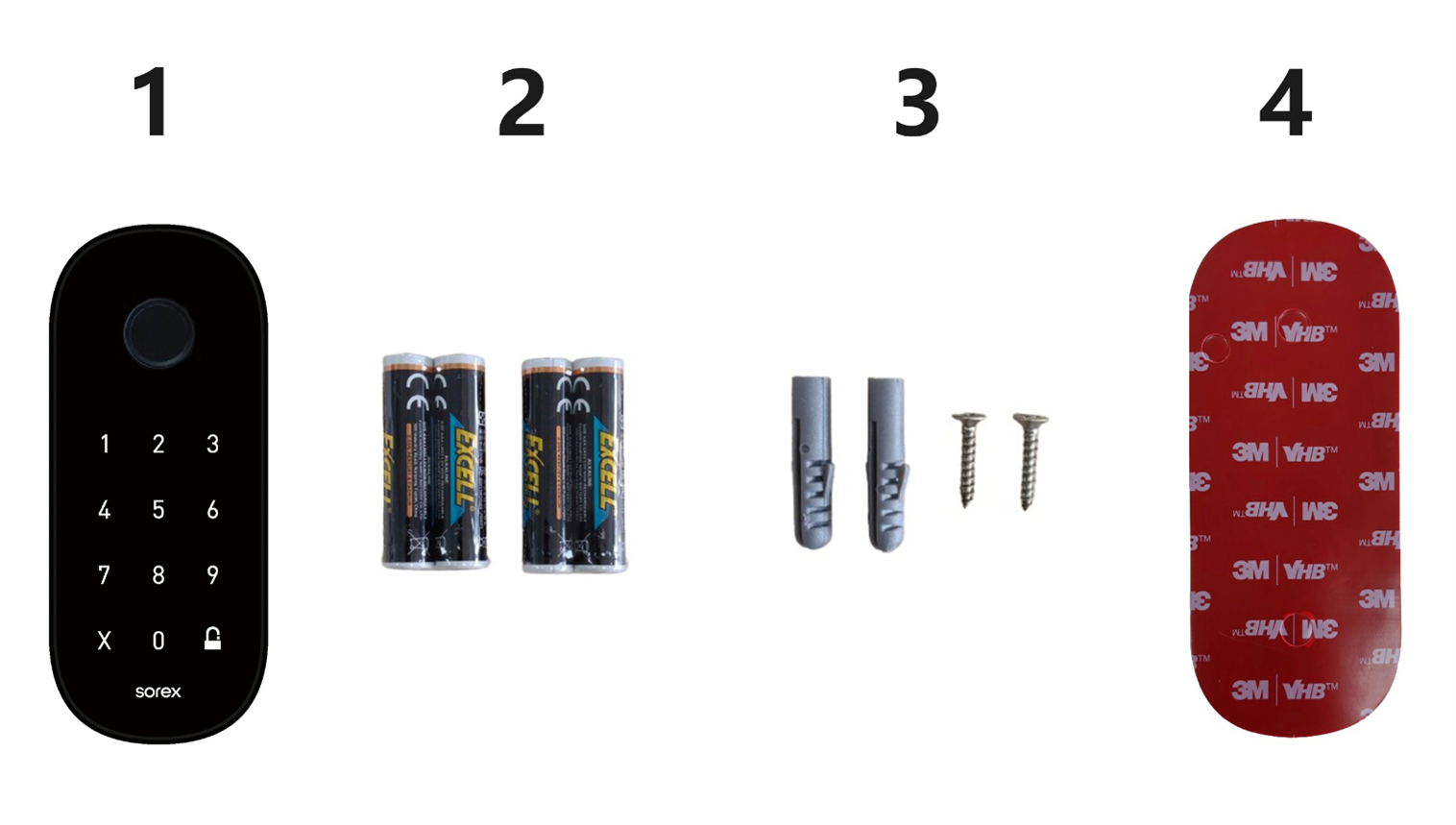

1. Package Contents

The package contains:

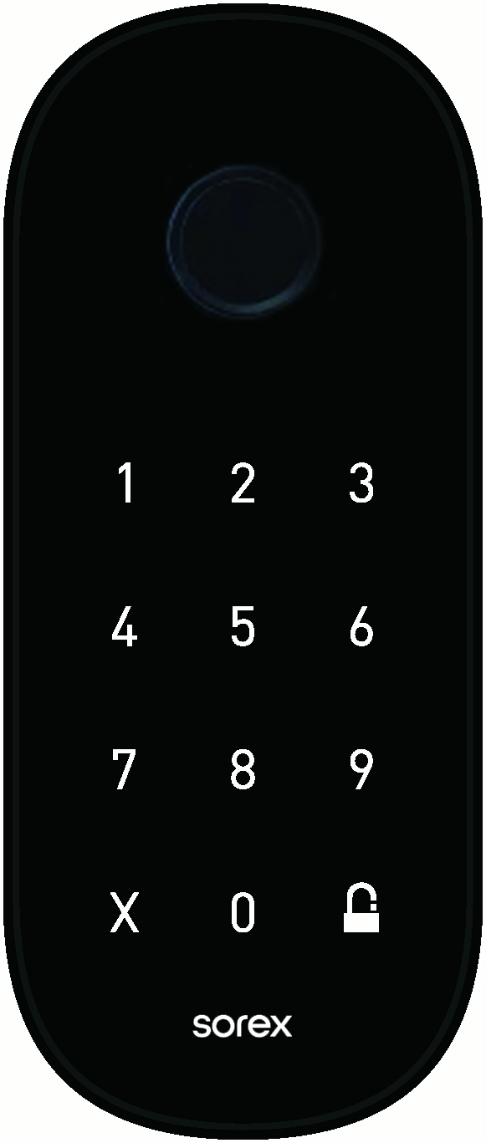

1. codepad max

2. 4 * AAA batteries

3. 2 screws, used to fix it to the door 4. 3M adhesive, used to fix it to the door

2. Technical Specifications

Fingerprint

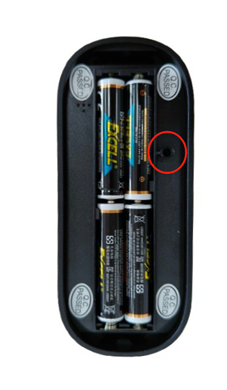

3. Installing the Battery

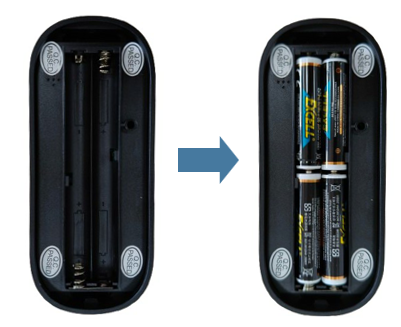

 First unscrew the screw at the bottom of the unit and then open the cover plate.

 Put the device into operation by inserting 4 AAA batteries. The device should now emit a signal tone. Then cover the back cover and tighten the screw.

4. Initial Setup

4.1 Activating Configuration Mode

To assign the wireless keyboard to a lock, first go to the desired lock in the SOREX SmartLock app, which is to be unlocked later via the keyboard.

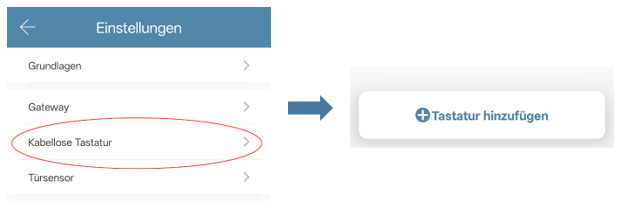

Then go to Settings → "Wireless Keyboard". A new keyboard can be added
by pressing the button "Add Keyboard" below.

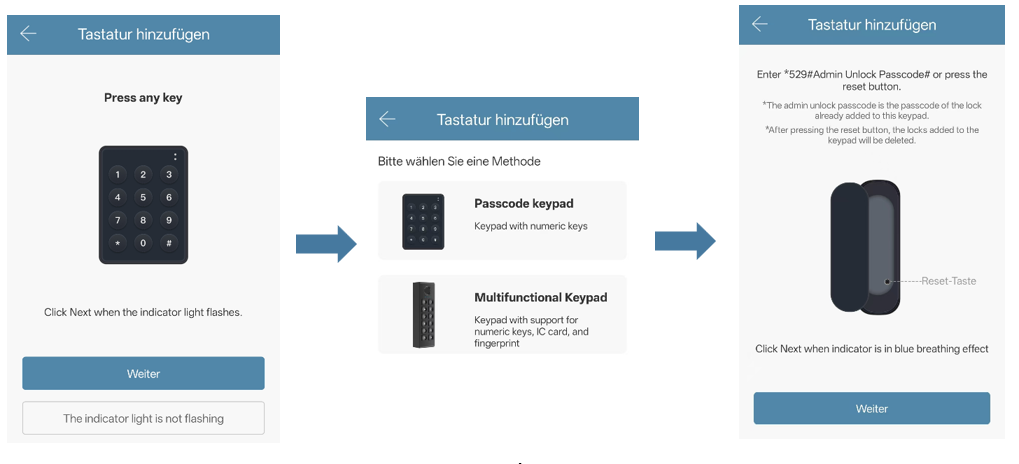

To allow the wireless keyboard to be detected by the phone, press any key, then click "Next" when the indicator flashes.

If this does not happen, please tap "The indicator is not flashing" and select "Multifunctional Keyboard", enter "*529#Admin Unlock Passcode#" or press the reset button. After entering the code, the LED key "2468" should flash white. Then click "Next".

Note: *The Admin Unlock Passcode is the passcode of the lock that has already been added to this keyboard.
                 *After pressing the reset button, the locks that were added to the keyboard will be deleted.

                 *To find the device, Bluetooth must be enabled and the smartphone must
                 be within the Bluetooth range of the keyboard.

                 *One lock can only add one keyboard, and one keyboard can be added to three locks
                 .

4.2 Connecting the Keyboard

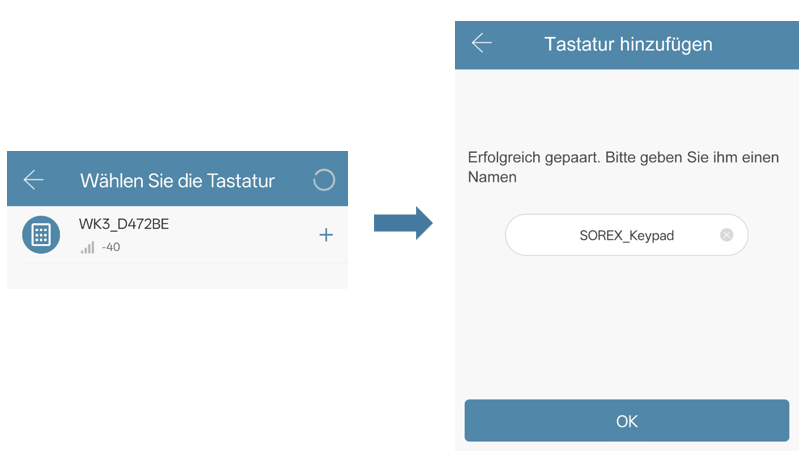

 Now you can select your keyboard and give it a name. Confirm with "OK".

The keyboard is now connected to the selected lock and can open it with all passcodes you have created. To open the lock, hold a card to the reader, place a finger on the sensor, or enter a valid code and then press Unlock.

Note: The lock can also be locked by pressing and holding the Unlock button.
Attention: Also note that the wireless keyboard should be within the Bluetooth range of the lock.

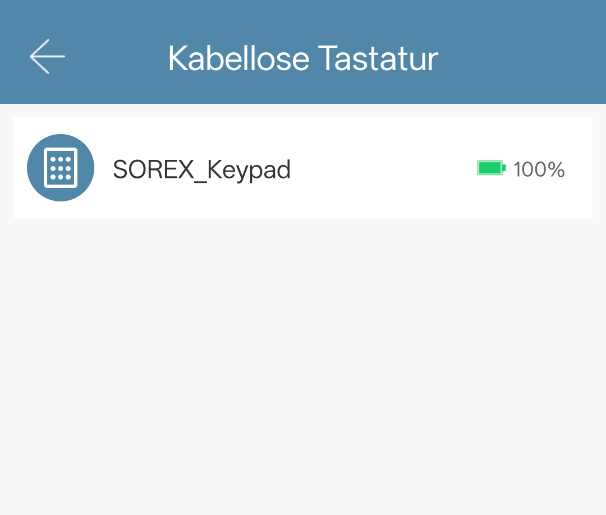

The keyboard will now be displayed on the selected lock under Settings → "Wireless Keyboard".
Additionally, the current battery status of the keyboard will be displayed.

4.3 Creating a Passcode

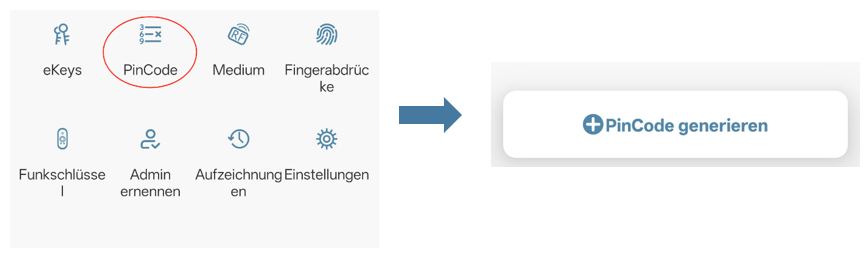

To generate a numeric code / PIN, first click on "Pincode" on the homepage of the desired lock and then on "Generate Pincode".

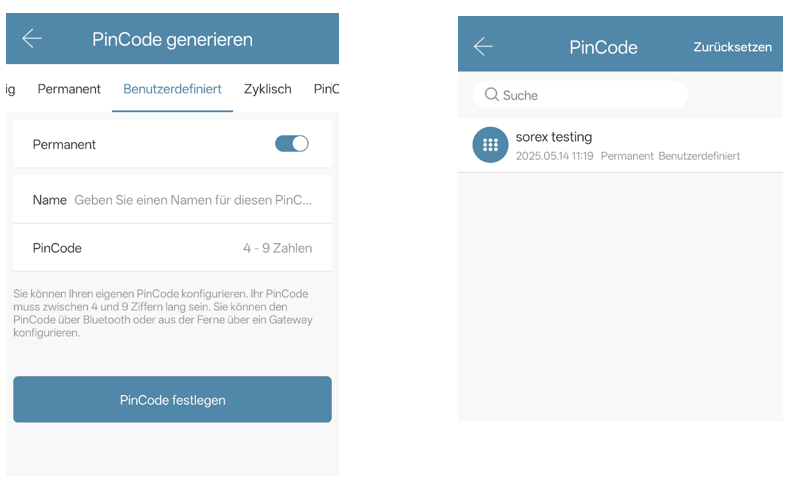

There are several options for generating a PIN. In the "Permanent" section, a random numeric code is generated and displayed after entering a name. Additionally, in the "Custom" section, you can create your own 4-9 digit number combination.

4.4 Medium

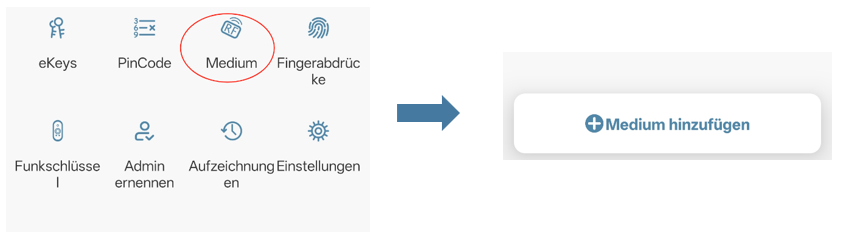

To add an RFID card, first click on "Medium" on the homepage of the desired lock and then on "Add Medium".

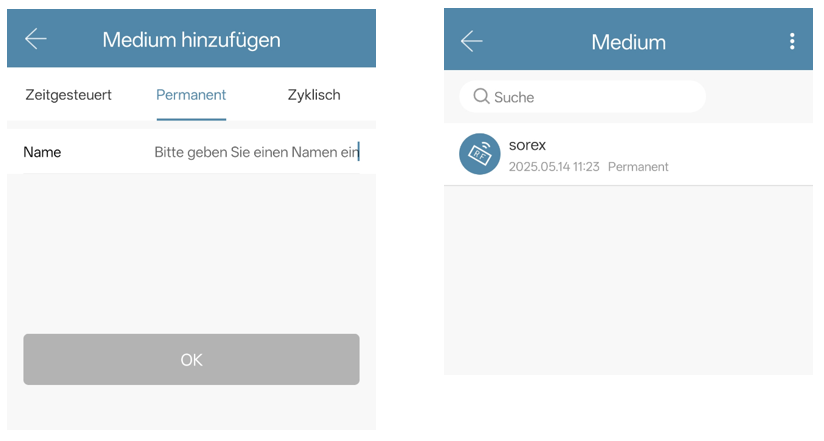

Now enter the name of the user and press "OK". Then place the RFID card on the keypad as soon as the app prompts you. The RFID card has now been successfully added.

4.5 Learning Fingerprint

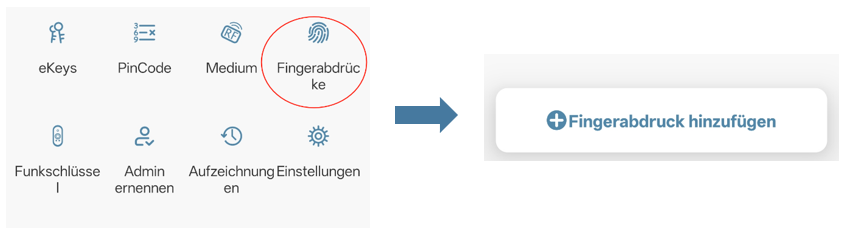

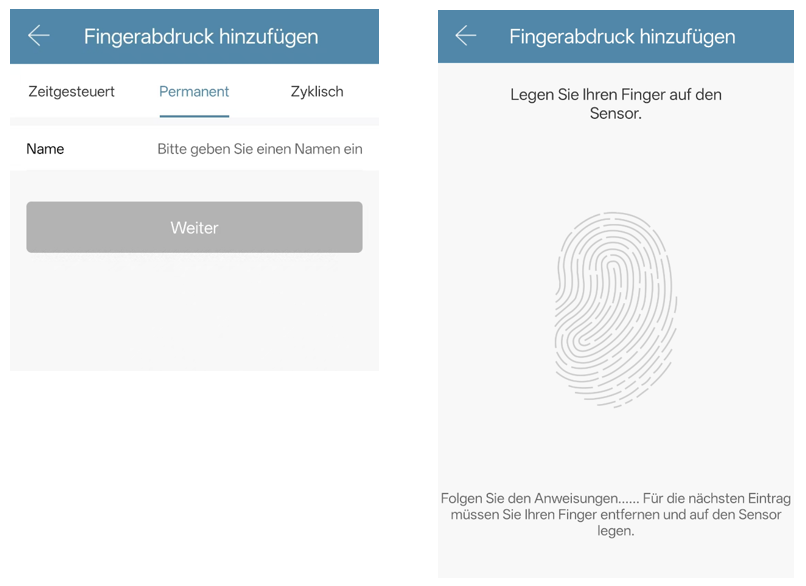

To add a fingerprint, first click on "Fingerprint" on the homepage of the desired lock and then on "Add Fingerprint".

Now you can enter a name and choose whether the user has permanent or temporary access. After clicking "Next", please follow the instructions in the app to register the finger.

Note: When you place your finger on the sensor, the LED key "2468" lights up. You must remove your finger and place it on the sensor for 4 recordings.

4.6 Deleting Keyboard

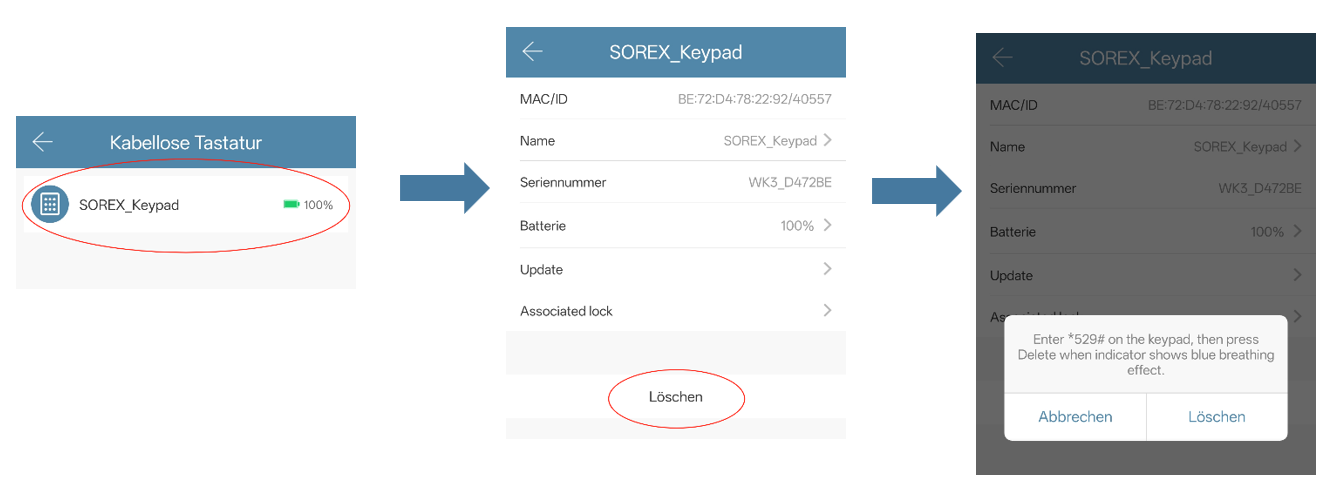

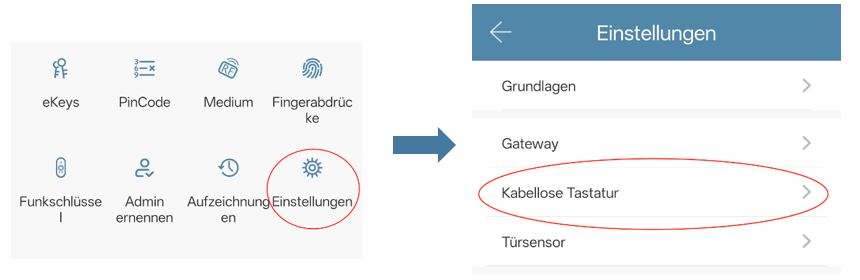

To delete a keyboard assigned to a lock, first click on "Settings" on the homepage of the lock and then on "Wireless Keyboard".

Now select the wireless keyboard you want to remove from the lock. Enter  "*529#" on the keyboard, then press "Delete" when the keys "2468" are flashing.

5. Resetting

You can reset the SOREX codepad max as follows:

1. Delete the codepad max from the app (Select Lock - Settings -
Wireless Keyboard - Delete). You must be within range of the unit to do this. or

2. Press the reset button on the interior unit for about 3 seconds or until two signal tones are played in
quick succession.

Note: Since the password and card are stored in the lock, when adding another keyboard, the original password and card can be used, but the original  fingerprint cannot be used. Therefore, you must remove the password and card from the lock.
