1. Scope of delivery
The package contains:
- Door fitting outdoor unit
- Door fitting indoor unit (Battery cover, door fitting, mounting plate)
- Outdoor unit screw (door handle direction)
- Indoor unit screw (door handle direction)
- 9x Mounting screws (3x short + 3x middle + 3x long - connection mounting plate & outdoor unit)
- 3x Screws indoor unit
- 2x Emergency key
- 1x allen key
- 1x Square pin long
- 1x Square pin short
2. Technical Data
Article number |
SMART WiFi Door Handle 2.0 silver - WT201010 SMART WiFi Door Handle 2.0 black - WT201000 |
EAN |
SMART WiFi Door Handle 2.0 silver -0093149093903 SMART WiFi Door Handle 2.0 black - 0093149093958 |
IP-protection class | IP44 |
Operating temperatur | -20° bis 60°C |
Supported RFID - media | MIFARE Classic (13,56 MHz) |
Frequency | 2,4 GHz |
Transmit power | 100 mW |
Power supply | 4x AAA-Batterien |
Storage of user data (RFID, Codes, Phone) |
Permanent (auch bei Batteriewechsel) |
Minimum backset |
~40mm (je nach Türe leicht unterschiedlich) |
Dimensions |
152 x 63 x 28 [mm] |
Number of media |
150 Zahlencodes 200 RFID-Medien Unlimitierte eKeys (Smartphone-Benutzer) |
3. Mounting
3.1 Standard drillings

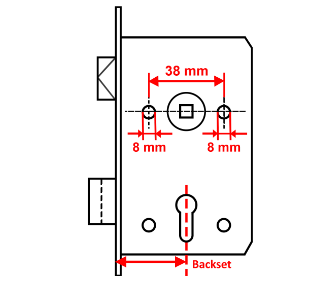

Please note that for mounting the SOREX SMART WiFi door fitting, two 8 mm holes must be drilled
at a distance of 38 mm. The square thickness is also 8mm. If your square recess is wider, you can
use an appropriate adapter.
3.2 Adjust door handle direction
3.2.1 Outdoor unit

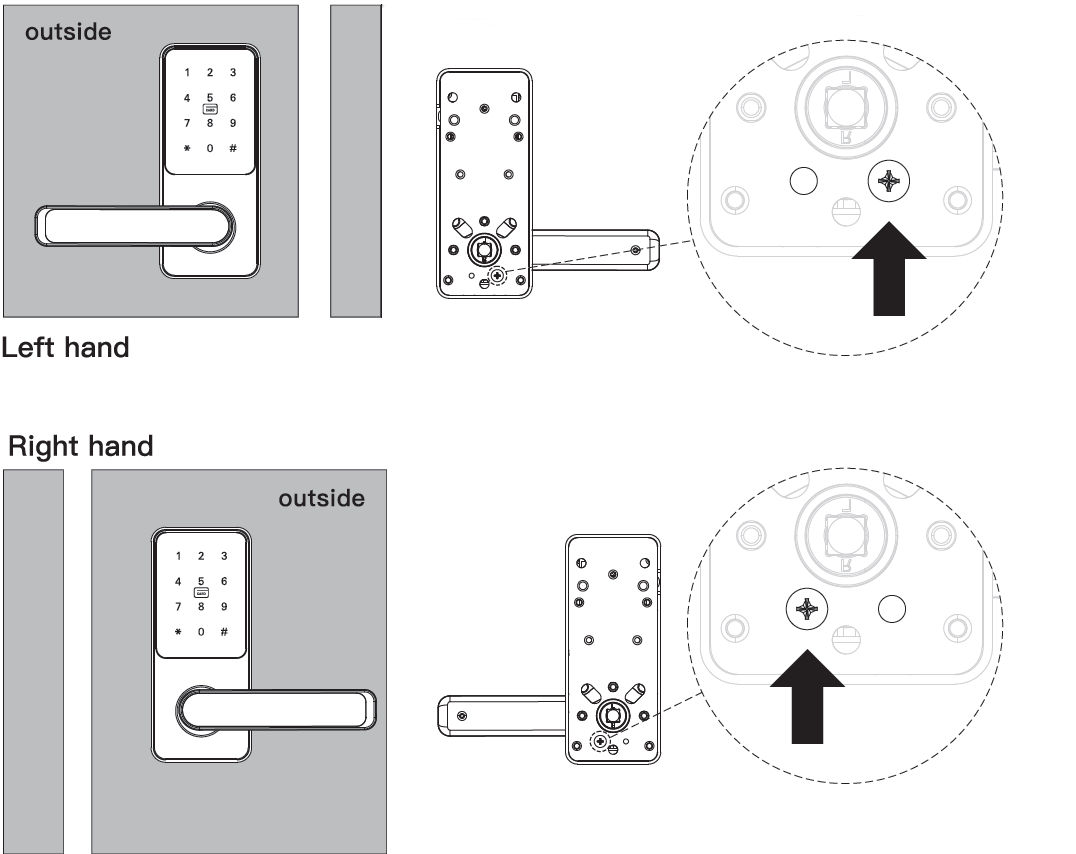

Screw the supplied screw (3.) into one of the two openings of the outdoor unit as shown below to
set the appropriate orientation. Make sure that the door handle is horizontal while screwing it on.
3.2.2 Indoor unit
Screw the supplied screw (4.) into one of the two openings of the outdoor unit as shown below to
set the appropriate orientation. Make sure that the door handle is horizontal while screwing it on.
3.3 Installation

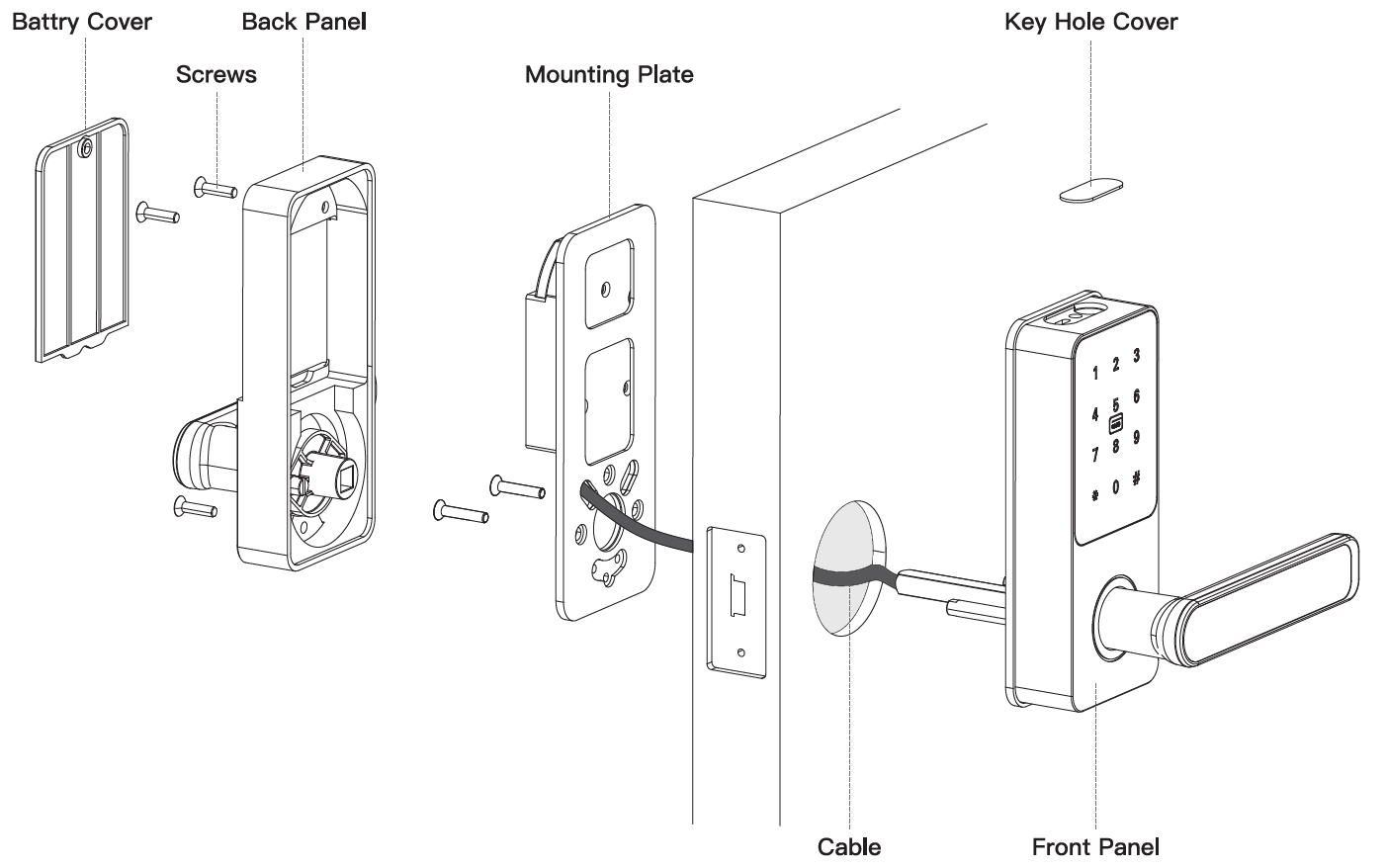

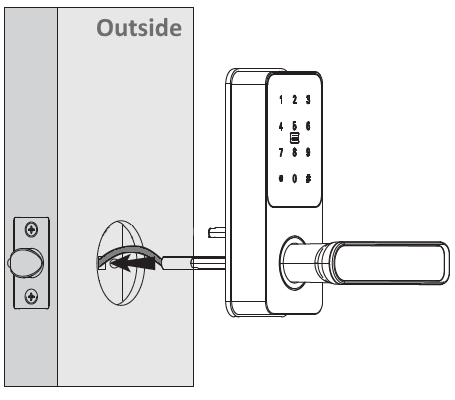

First guide the external unit with the screwed-on adapter pins, as well as the square including the
cable running inside through the corresponding openings of the standard holes of the door lock.
Then, from the other side, the mounting plate can be screwed to the inside with the screws supplied (5.). The square, including the cable, runs through the larger round opening. Depending on the door thickness use the appropriate screws.

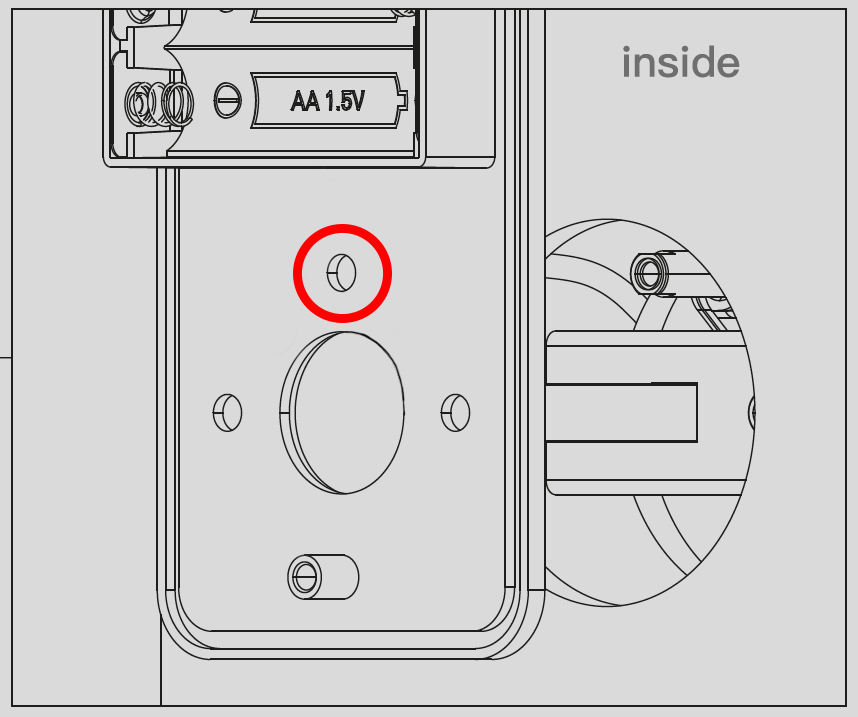

There is a third hole on the mounting plate above the round opening for the square spindle to additionally secure the door fitting and prevent it from twisting during operation:
The door fitting can also be screwed to the door leaf through this hole.

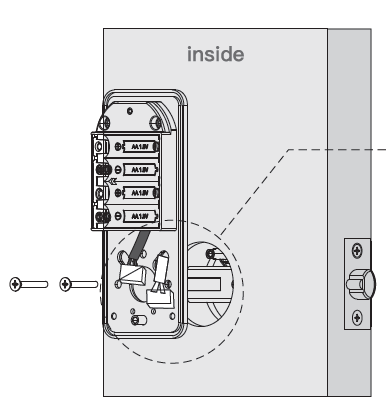

After the mounting plate has been firmly screwed to the outer plate, the power cable can be connected. Connect the plug from the battery unit to the plug that has been pulled through. There is only one way to connect the two plugs.

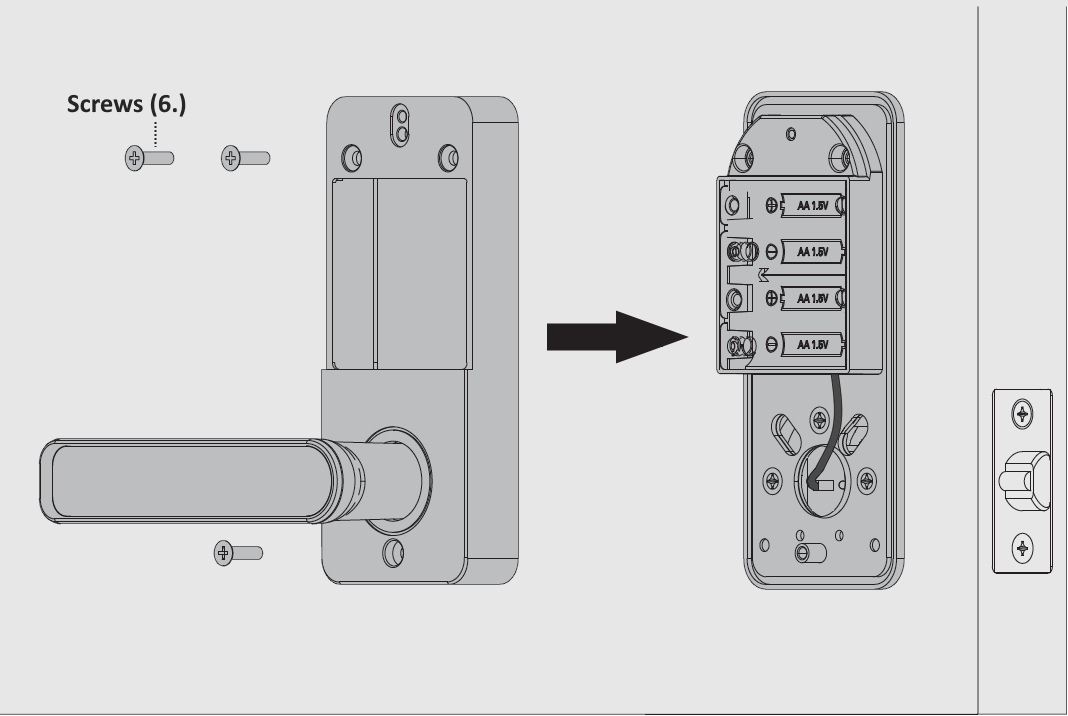

Now you can mount the inner unit of the door fitting using the screws (6.). Make sure that the cable
does not get in the way, but is neatly hidden to avoid damage and to ensure proper function.

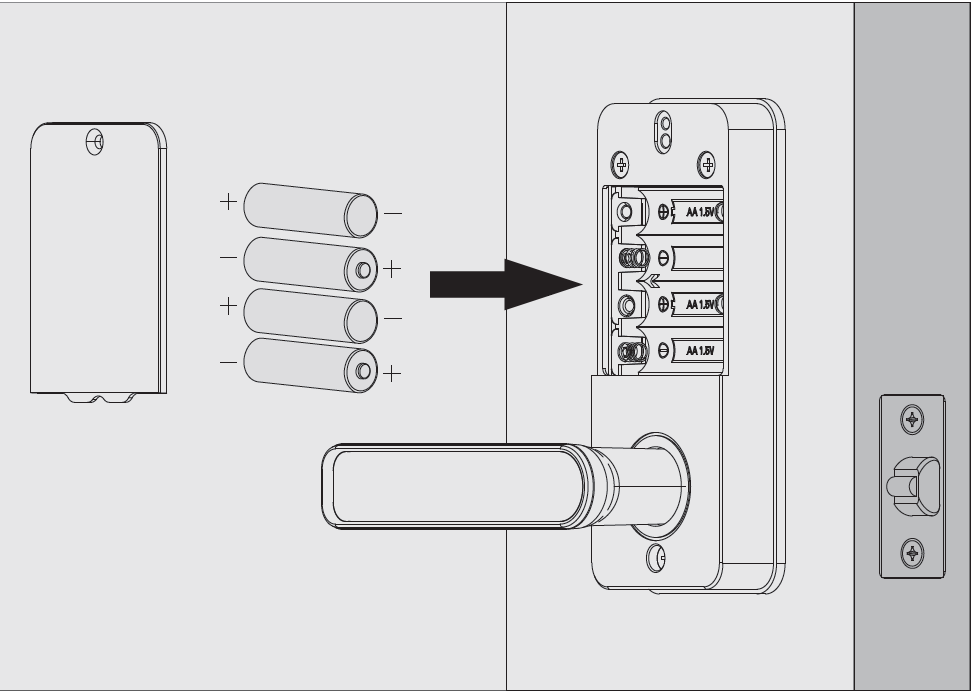

Four AA batteries can then be inserted into the battery compartment and closed with the battery cover and the corresponding screw. When inserting the batteries, please pay careful attention to the correct orientation of the batteries.
4. Emergency opening
If opening is no longer possible because the RFID card or numerical code is no longer recognized due to an error or the batteries have run out, the door handle can also be opened manually with the supplied emergency key.

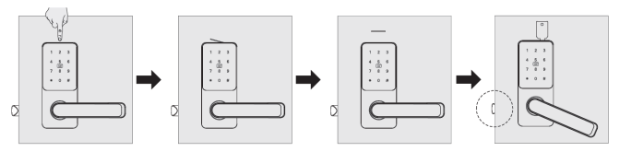

First remove the cover plate on the outdoor unit by pressing down on one side. The emergency key can now be inserted into the lock. Turn the key to open the door with the door handle.
Note: Under the cover plate there is also a micro-USB connector with which you can supply the door fitting with power. However, this does not charge the batteries and is only intended for one opening in case the installed batteries are empty.
5. Reset
You can reset the door fitting in two different ways:
1. Delete the door fitting from the app (select door fitting -> settings -> "Delete")

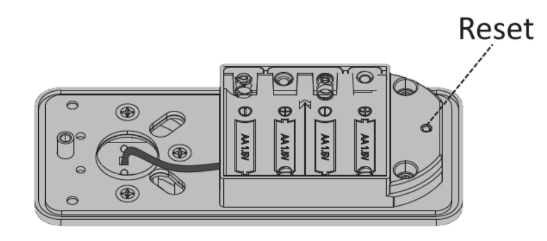

2. Open the battery compartment and press the reset button for about three seconds. The door
fitting will then give you an acoustic signal. You will then be asked to enter an initialization
code. Enter the code "000" on the keypad and confirm this with the # key.
