1. Technical Data

2. Insert batteries

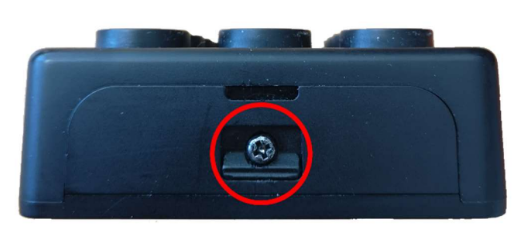

First unscrew the screw on the bottom of the unit and then pull out the battery compartment.

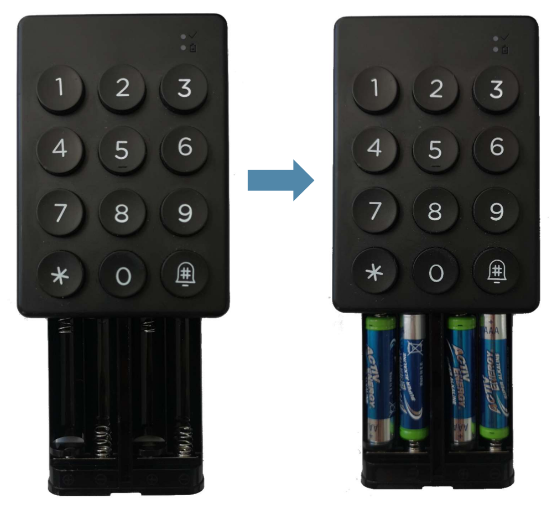

Now insert 4 x AAA batteries, push the battery compartment back into the housing and screw it tight.

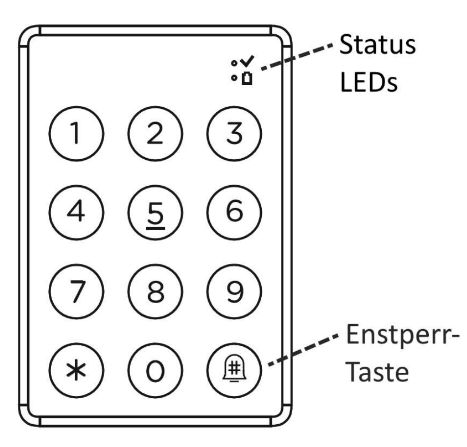

To test the functionality of the keypad, check whether the green status LED (top right) flashes when a
button is pressed.

Note: Make sure that the batteries have been inserted correctly and that there is a connection to the
contacts on both sides.

3. App configuration

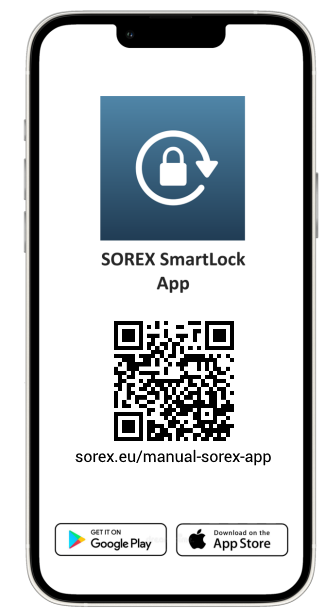

Instructions for the SOREX SmartLock app on how to add and configure the wireless codepad in the app can be found in the SOREX Helpcenter. Follow the link or scan the QR code below.
