e-cylinder code
Manual (Products before 2022):
Manual (Products starting from 2022):

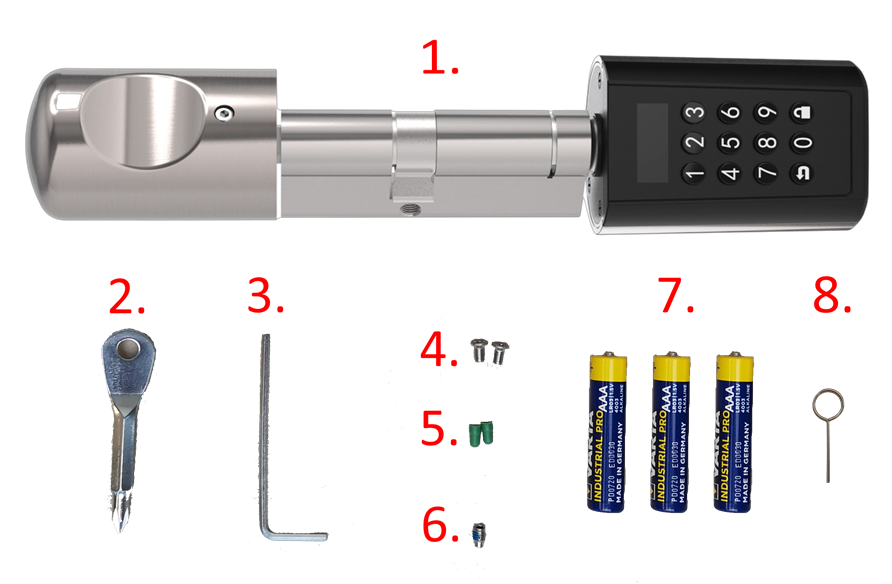

1. Scoop of delivery
Das Paket beinhaltet:
- SOREX FLEX Pincode Cylinder
- Screw driver
- Allen key
- 2x screws for the battery cover
- 2x Silicone plug
- (Spare-) Locating screw for metal case (outdoor knob)
- 3x AAA-batteries
- Needle
2. Technical Data
Article number | MD402000 |
EAN | 0784089092759 |
IP-Certification | IP44 |
Operating temperature | -40° to 80°C |
Operating humidity | 10%-90% |
Power supply | 3x AAA batteries |
Frequency | 2,4 GHz |
Transmit power | 100 mW |
Battery lifespan | ~ 10-12 months |
Storage of access data | Permanent (also during battery change) |
Number of access data |
20 RFID – cards 10 Passcodes |
Emergency power supply | 5V, Micro-USB |
3. Mounting of the cylinder
3.1 Remove the old cylinder

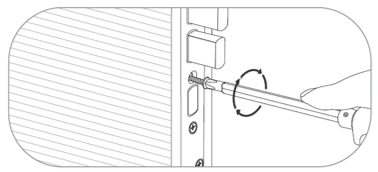

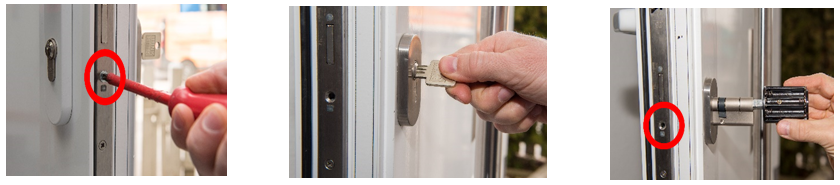

Before you can start with the installation you need to remove the old cylinder. Therefore remove the locating screw inside the red circle (as shown in the first picture below). After doing so you are able to pull out the old cylinder (as seen in the picture beneath).

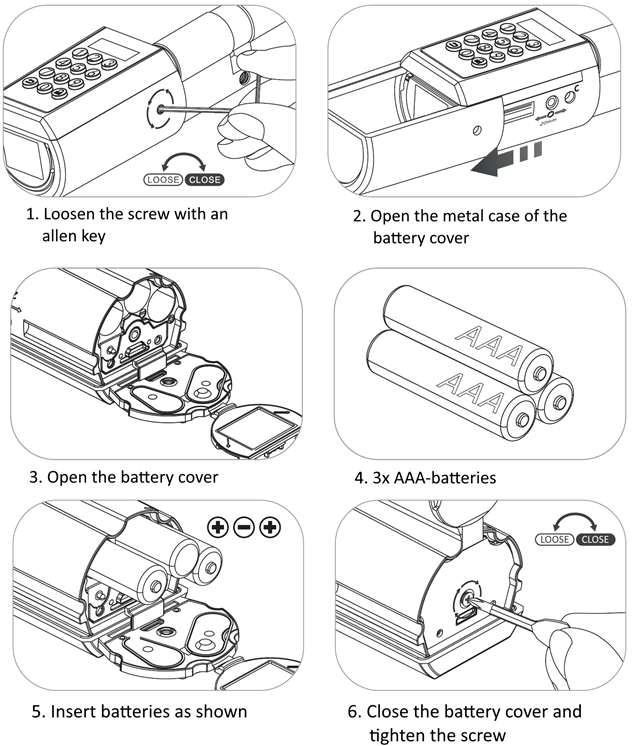

3.2 Insert / Replace batteries
3.3 Mounting the cylinder
Note: Please make sure the device is working accurate before installing it!

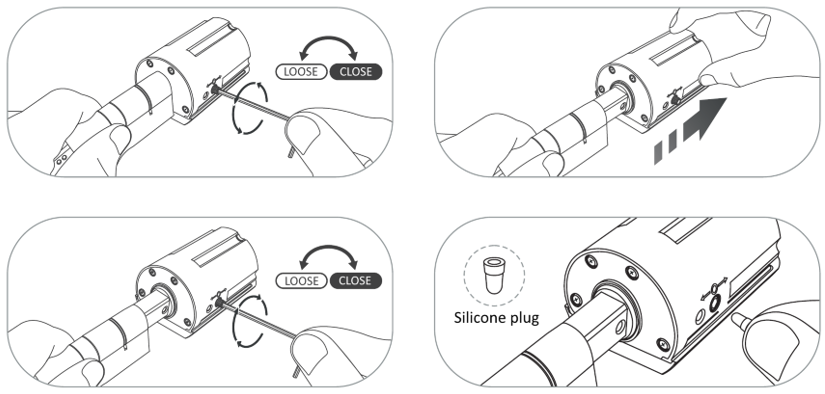

To start with, adjust the length of the front and rear handle of the cylinder as shown below.
Due to safety reasons, a complete removal of the knob is NOT possible

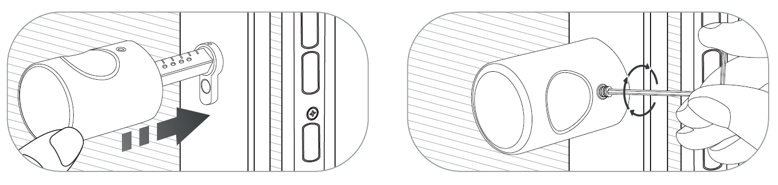

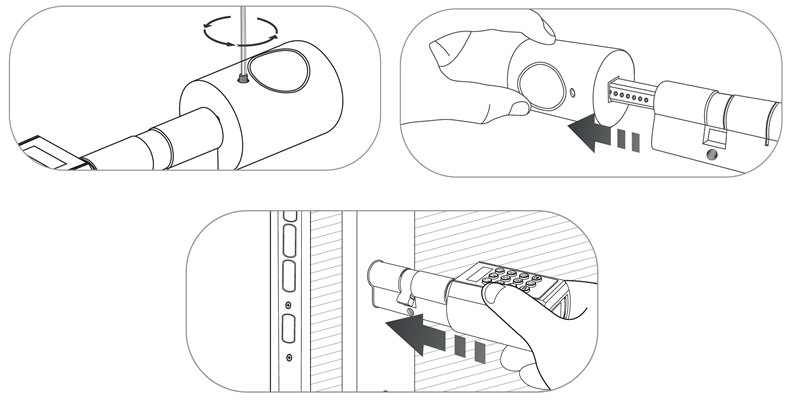

Before installing the cylinder, you have to remove the rear handle / knob. Then you can push the cylinder trough the lock, from the outside to the inside. Pay attention that the passcode handle is on the outside of the door.
Note: After finishing the steps mentioned above, you can adjust the length of the passcode handle if you need to.
When the cylinder is attached to the door you can now screw down the location screw to the door.
After that, you can attach the rear handle / knob of the cylinder on the pole. When everything’s on place, screw down the location screw of the metal knob.
4. Emergency power supply

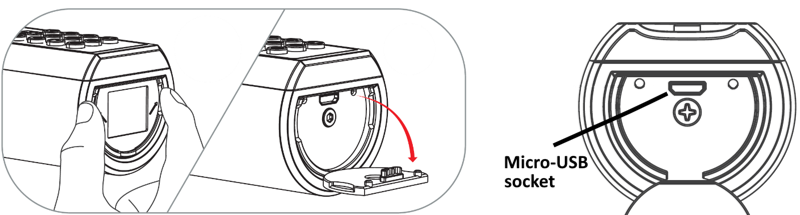

On the outside knob (handle with passcode) of the cylinder you will find a Micro-USB socket under the silicone cover, which you can use to supply the cylinder with emergency power, e.g. with the aid of a power pack. This is necessary, for example, if the inserted batteries become empty and you forget to replace them in time.
The batteries or the cylinder are NOT going to be charged.
5. Operation
Note: Before an Admin – PIN has been learned, the cylinder is in delivery state. In this state, can be opened with the simple PIN: 123456 or any RFID – card. To change this, follow the steps under 6.1.
Note: A maximum of 10 PINs and an additional 20 RFID media can be taught. Only one admin PIN can exist at any time.
Note: PINs must be at least 6 digits long.
5.1 Initial setup: Set up Admin-PIN
To change the initially set Admin – PIN, press the 🔒 - button twice and then enter the passcode "123456". Confirm again with the 🔒 - button. Now enter a new Admin – PIN twice and confirm each time with the 🔒 - button.
Note: PINs must be at least 6 digits long.
5.2 Change Admin-PIN
To change the Admin – PIN, press the 🔒 - button twice and then enter the previous Admin – PIN. Then press the 🔒 - button three times. Now enter a new Admin – PIN and confirm with the 🔒 – button twice.
Note: PINs must be at least 6 digits long.
5.3 Add User-PIN
To add a User – PIN, press the 🔒 - button twice and then enter the Admin – PIN. Afterwards press the 🔒 - button twice, then the 2 and finally the 🔒 - button again. Now enter a User – PIN twice and confirm each time with the 🔒 – button.
Note: PINs must be at least 6 digits long.
Note: After a User – PIN has been learned, the User – ID (number) is shown on the display of the cylinder for a short time. Please make a note of the ID in order to remove the respective User – PINs later if necessary.
5.4 Delete User-PIN
To delete a User – PIN, press the 🔒 - button twice and then enter the Admin – PIN. Afterwards press the 🔒 - button twice, then the 3 and finally the 🔒 - button again. Now enter the User – ID which has to be deleted and confirm with the 🔒 – button.
Note: The User – ID must be in double digits.
5.5 Delete all PINs
To delete all saved User – PIN of the cylinder, press the 🔒 - button twice and then enter the Admin – PIN. Afterwards press the 🔒 - button twice, then the 4 and finally the 🔒 - button again. Now select 1 (Yes) to delete all PINs and confirm the entry with the 🔒 – button.
Note: Press 2 (No) to go back one step.
5.6 Add RFID-card
To add a RFID – card, press the 🔒 - button twice and then enter the Admin – PIN. Confirm with the 🔒 - button and then press the 2. Afterwards press the 🔒 - button twice. Now an RFID – card can be held in front of the keypad in order to add it.
5.7 Delete RFID-card
To delete an RIFD – card, press the 🔒 - button twice and then enter the Admin – PIN. Confirm with the 🔒 - button and then press 2. Press the 🔒 - button and 2 again and confirm one last time with the 🔒 - button. Now you can hold an RFID – card on the keypad in order to delete it.
5.8 Delete all RFID-cards
To delete all RFID – cards stored in the cylinder, press the 🔒 - button twice and then enter the Admin – PIN. Confirm with the 🔒 - button and then press 2. Then press the 🔒 - button and 3 and confirm one last time with the 🔒 - button. Now select 1 (Yes) to delete all RFID – cards and confirm your entry with the 🔒 - button.
Note: Press 2 (No) to go back one step.
5.9 Add remote control
To add a remote control, press the 🔒 - button twice and then enter the Admin – PIN. Confirm with the 🔒 - button and then press the 3. Afterwards press the 🔒 - button twice. The display now shows "Add remote control".
Now press the button on the remote control for about four seconds until the red light changes to a violet light. The remote control will now be automatically added and an acoustic signal sounds. The ID number of the remote control is displayed briefly at the end.
5.10 Delete remote control
Delete a single remote control
To remove a single remote control from the cylinder, the selected remote control must be reset. Afterwards the remote control cannot open the cylinder anymore. In order to reset the remote control, press the button on the remote control until the LED flashes up blue twice.
Note: To reconnect the remote control to the cylinder again, follow the instructions in point 6.9 Add remote control.
Delete all remote controls
To delete all remote controls, press the 🔒 - button twice and then enter the Admin – PIN. Confirm with the 🔒 - button and then press 3. Then press the 🔒 - button and 2 and confirm one last time with the 🔒 - button. Now select 1 (Yes) to delete all remote controls and confirm your entry with the 🔒 - button.
Note: Press 2 (No) to go back one step.
5.11 Change language
To change the language, first restart the cylinder. You can do this by inserting a needle (8) briefly into the hole to the right of the Micro – USB socket. After you hear an acoustic signal, you can now choose between 1 - English and 2 - German. Finally confirm the entry with the 🔒 – button.
Note: If you choose 3 you can select Chinese as language.
5.12 Turn on/off sound
To switch the sound of the cylinder on/off, press the 🔒 – button twice and then enter the Admin – PIN. Confirm with the 🔒 – button and then press the 6. Afterwards press the 🔒 – button twice. Now select 1 (Yes) to switch the sound on/off and confirm the entry with the 🔒 – button.
Note: Press 2 (No) to go back one step.
5.13 Turn on/off bluetooth
To switch Bluetooth on/off, press the 🔒 – button twice and then enter the Admin – PIN. Confirm with the 🔒 – button and then press 6. Afterwards press the 🔒 – button and 2 and confirm one last time with the 🔒 – button. Now select 1 (Yes) to switch Bluetooth on/off and confirm the entry with the 🔒 – button.
Note: Press 2 (No) to go back one step.
5.14 Change lock-time
To change the lock – time of the cylinder, press the 🔒 – button twice and then enter the Admin – PIN. Confirm with the 🔒 button and then press 6. Then press the 🔒 – button and 4 and confirm one last time with the 🔒 – button. Now enter a closing time in the range of 5 to 14 seconds and confirm it with the 🔒 – button.
Note: The closing time must be two digits (05, 14).
Note: In delivery condition the lock – time is set to 10 seconds.
5.15 Reset cylinder to delivery settings
To reset the cylinder to delivery conditions, press the 🔒 – button twice and then enter the Admin – PIN. Confirm with the 🔒 – button and then press 6. Afterwards press the 🔒 – button and 6 and confirm one last time with the 🔒 – button. Now select 1 (Yes) to reset the cylinder and confirm the entry with the 🔒 – button.
Note: Press 2 (No) to go back one step.
5.16 Passage-mode
To activate the passage – mode, first press the 🔒 – button to wake up the screen. Now enter a valid PIN and confirm with the 🔒 – button. Repeat the last step one more time.
The door is now in pass-through mode and can therefore be locked open & closed by anyone.
Note: To deactivate the passage – mode, enter a valid PIN (see 5.17 Open via PIN).
5.17 Open via PIN
To open the cylinder with a valid PIN, first press the 🔒 – button to wake up the screen. The PIN can then be entered and the entry confirmed with the 🔒 – button. The cylinder is now open for the set locking time.
5.18 Open via RFID-card
To open the cylinder with an RFID – card, first press the 🔒 – button to wake up the screen. Then a valid RFID – card can be placed on the cylinder's keypad to open it.
