smart pad max pro
1. Scope of delivery
The following ingredients are included:
2. Technical Data
Article Number |
WT102000 (without Fingerprint) & WT102020 (with Fingerprint) |
EAN |
0685717261274 & 0685717261250 |
Operating temperature |
-20° to 60°C |
Operating humidity |
15%RH to 90%RH |
Power consumption |
1A |
Standby power consumption |
15mA |
Protection class |
IP66 |
Frequency |
2,4 GHz |
Storage of user data (Fingerprint, RFID, Codes, Handy) |
Permanent (auch bei Stromausfall) |
Number of media |
200 RFID-Media 150 Pincodes 1000 Fingerprints (Model with fingerprint) Unlimited eKeys (Smartphone-user) |
Power supply |
12V DC, min. 0,5A |
max. switch voltage max. switch current |
250V AC | 220V DC 1A |
3. Installation and wiring

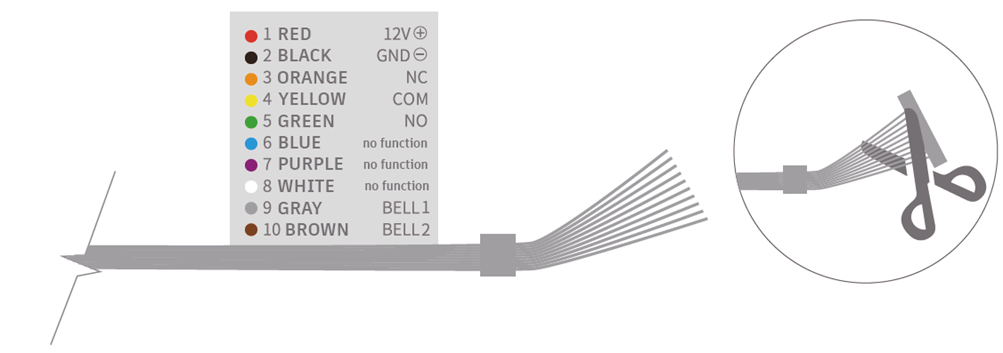

Note: If there is a connector at the end of the cable bundle, you must cut it off before you can wire the product.

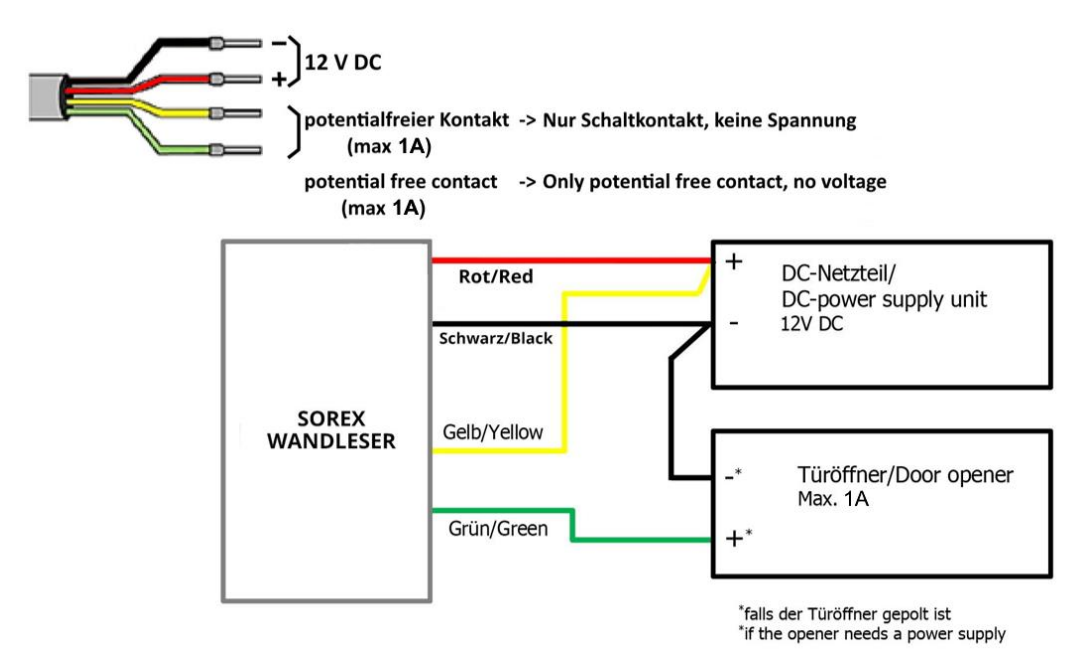

3.1 Wiring diagram for e-opener

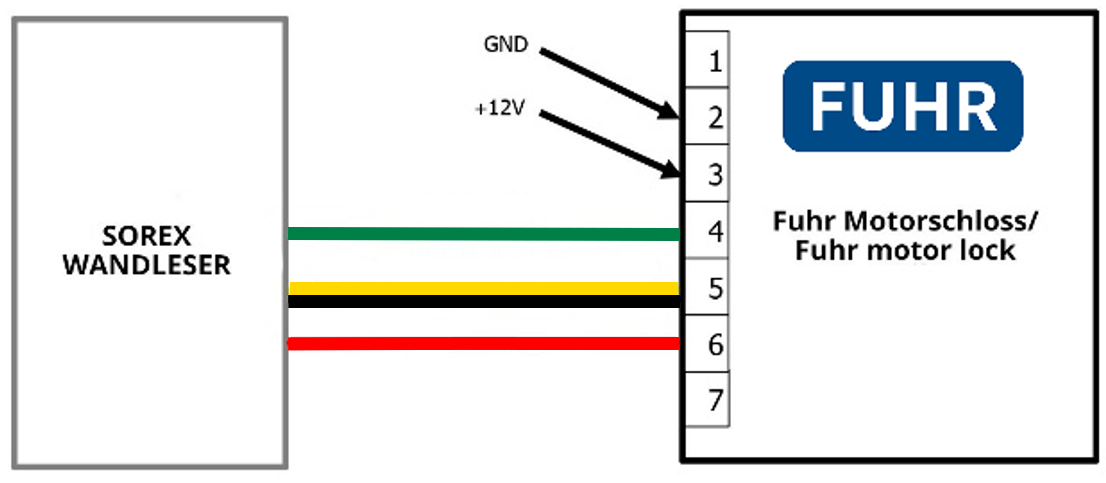

3.2 Wiring diagram for Fuhr motor lock

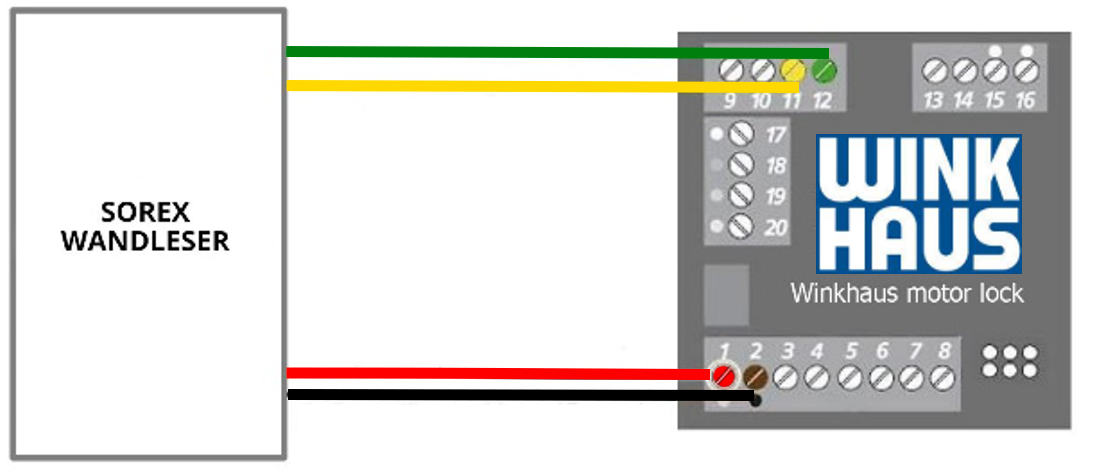

3.3 Wiring diagram for Winkhaus motor lock

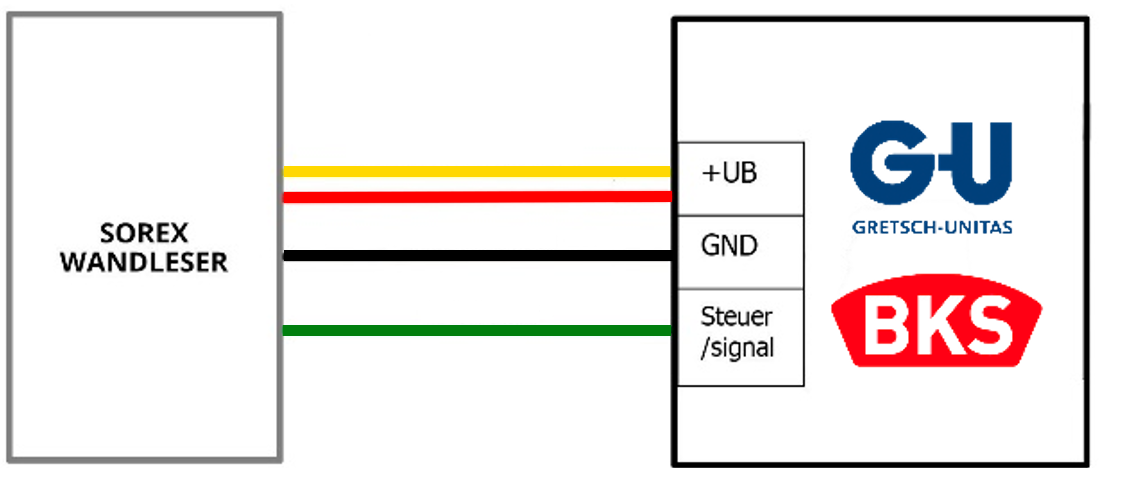

3.4 Wiring diagram for GU-BKS A-opener

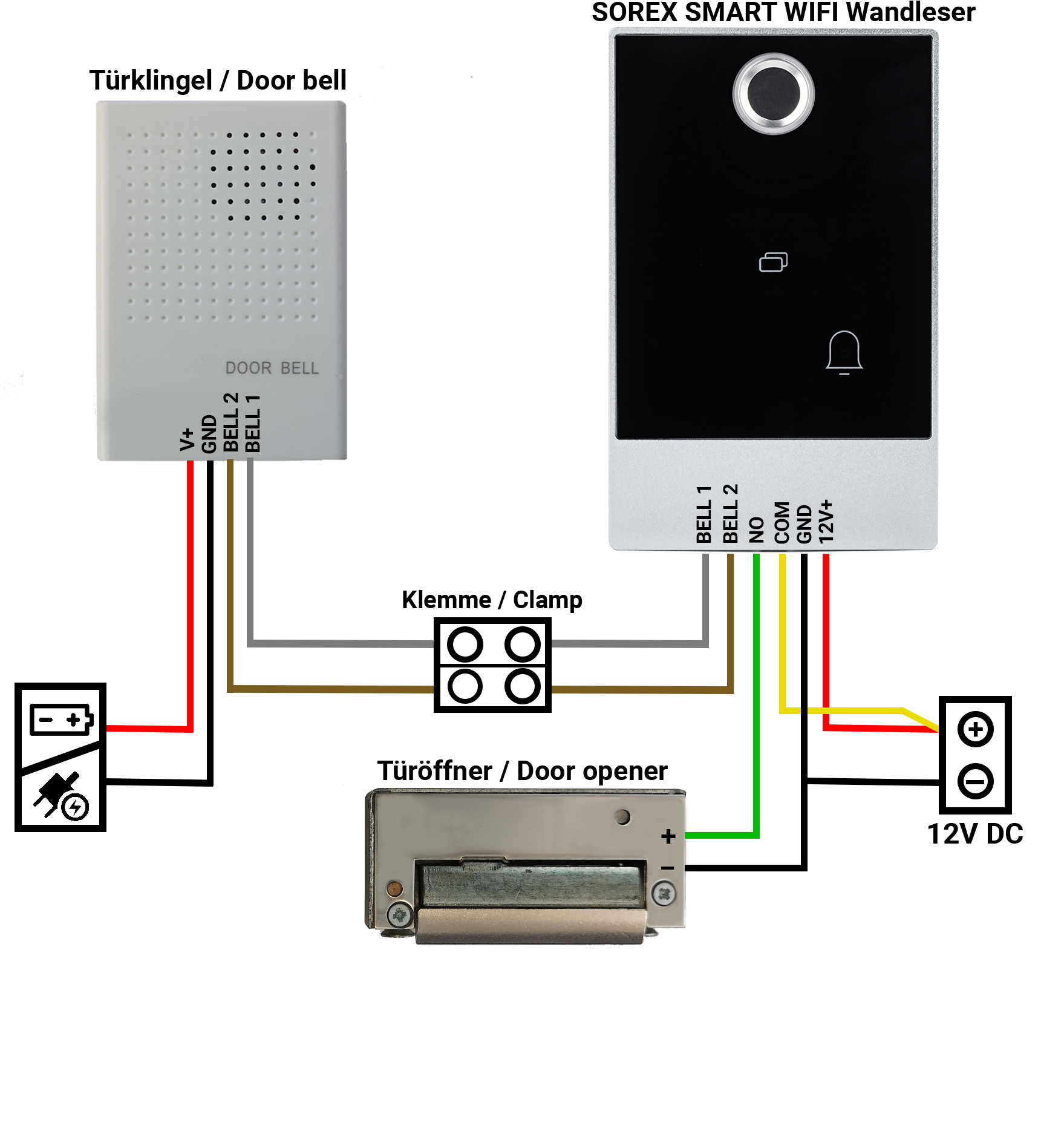

3.5 Wiring diagram for e-lock & door bell
4. Smartphone App
Search for the SOREX SmartLock app in the Google Play Store or Apple Store and install it.
You can find instructions for the SOREX SmartLock app here.
5. Reset to factory settings
You can reset the wall reader in two different ways:
-
Delete the wall reader from the app (select wall reader -> settings -> "Delete")
or - Unscrew the plate at the back and press the button inside for approx. 3 seconds until two signal tones are played in quick succession.
