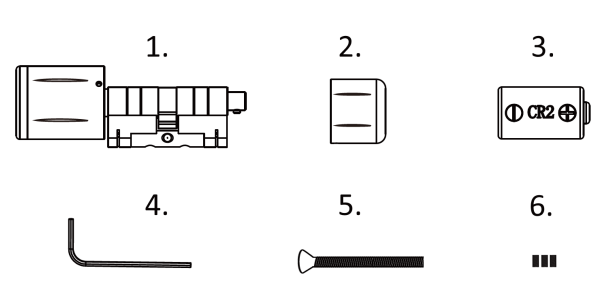

1. Scope of delivery

The package contains:

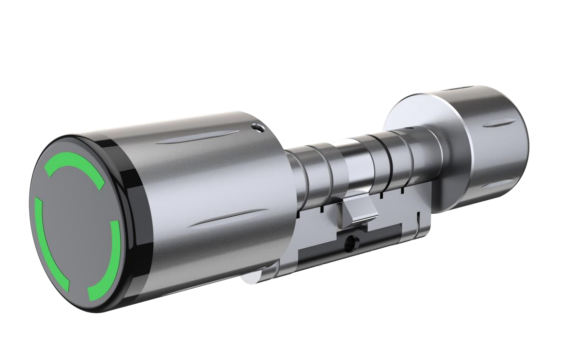

1. SMART WiFi Pro Cylinder
2. Inside knob
3. 2x CR2 Lithium battery
4. Allen key (for outside knob)
5. Fixing srew
6. 3x worm screw (for outside knob)

2. Technical Data

3. Mounting

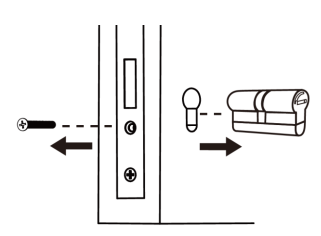

3.1 Remove previous cylinder

Before you can start the assembly, you must remove your old cylinder. To do this, remove the fixing srew and then push through or pull out the old cylinder.

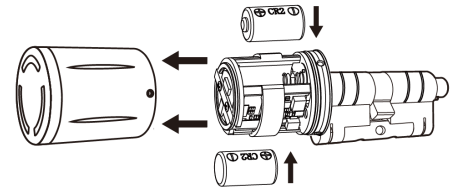

3.2 Insert / Change batteries

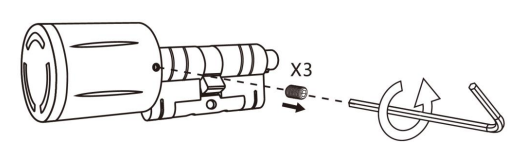

To insert or change the batteries, first remove the cover from the outside knob. To do this, unscrew the three worm srews with the Allen key provided. The cover can then be pulled off.

Now you can insert the two CR2 batteries into the corresponding holders. Pay attention to the polarity of the batteries. If the batteries are inserted correctly, the outside knob briefly lights up green.

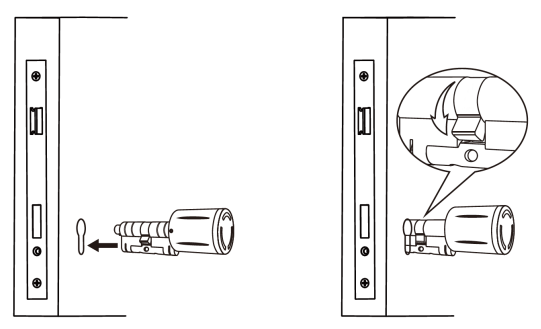

3.3 Attach cylinder to the door

Insert the SMART WiFi Pro cylinder into the lock case from the outside to the inside. When delivered, the inside knob is removed. If this is not the case, it should be removed beforehand. To slide the cylinder through without any problems, turn the outside knob so that the locking bit is flush with the cylinder shape.

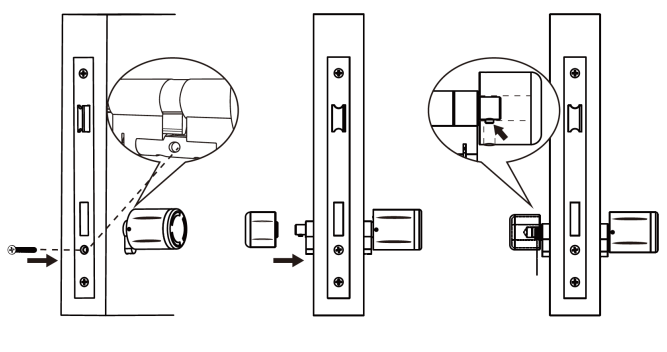

Now the cylinder can be fixed to the door again with the previously removed fixing screw. If you do not have a fixing screw, the fixing srew included in the delivery, if suitable, can be used. Finally, the outside knob can be fitted. Make sure that it also engages with the fixation and is fimly mounted.

4. Adjust cylinder length

To adjust the cylinder length, follow the instructions in the instruction video located in the "HelpCenter" under "Instruction videos" on our website. You can also watch the video directly with the link below:

https://drive.google.com/file/d/17wvZOc0XvoI4brMzAh5afrfBZNnErBPu/view

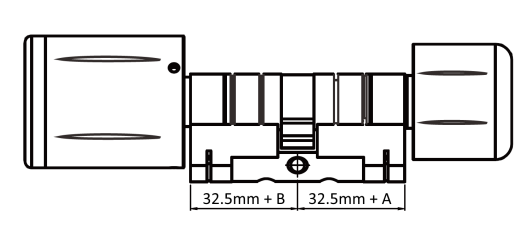

The SMART WiFi Pro cylinder can be adjusted to the following cylinder lengths:

The basic length is 32,5/32,5 mm (inside/outside).

The cylinder length can be extended inwards (A) & outwards (B) in 5/10 mm increments up to 62,5 mm.

Depending on the length option, suitable length adapters (5/10 mm) for the cylinder and a suitable adapter pin must be attached.

5. App configuration

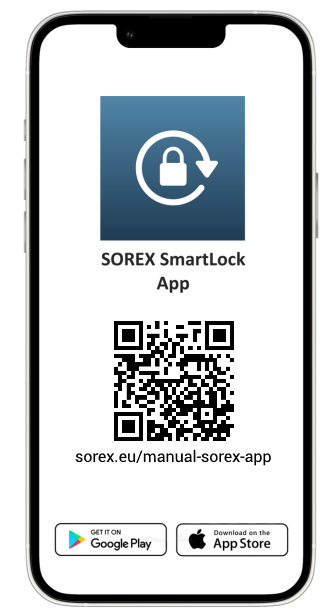

Instructions for the SOREX SmartLock app on how to add and configure the SMART WiFi Pro cylinder in the app can be found in the SOREX Helpcenter. Follow the link or scan the QR code below.
