smart unilock 3.0

User Manual

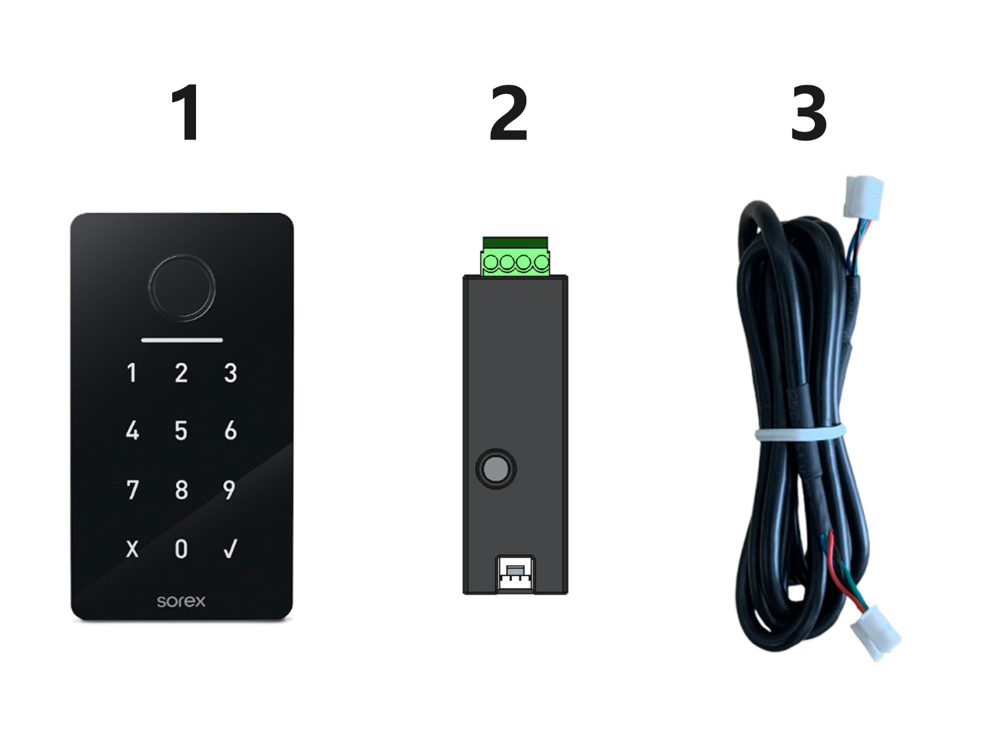

1. Package Contents

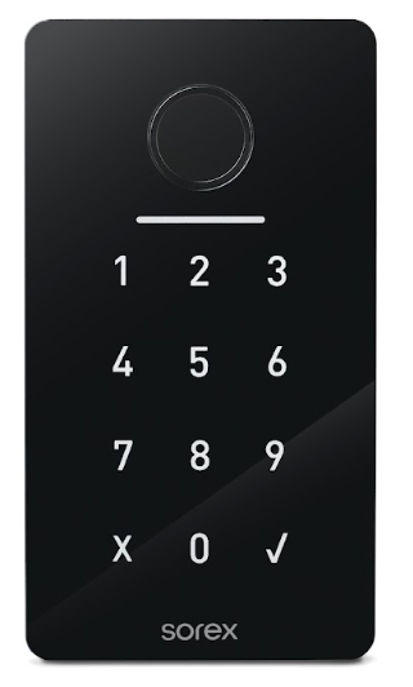

1. smart unilock 3.0 outdoor unit
2. unilock indoor/relay unit with pluggable screw terminal for connection with electronic door opener and power supply

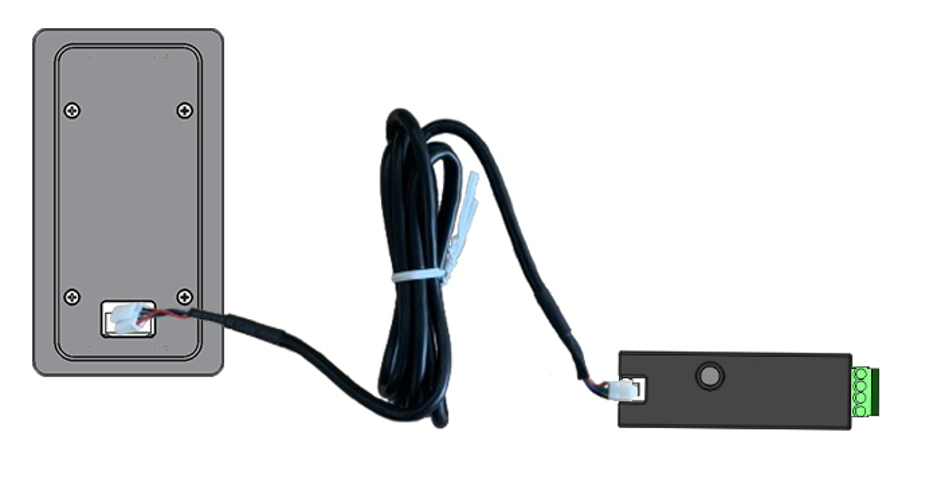

3. Connection 1.2m cable between indoor and outdoor unit
4. (optional) 3m extension cable

2. Technical specifications

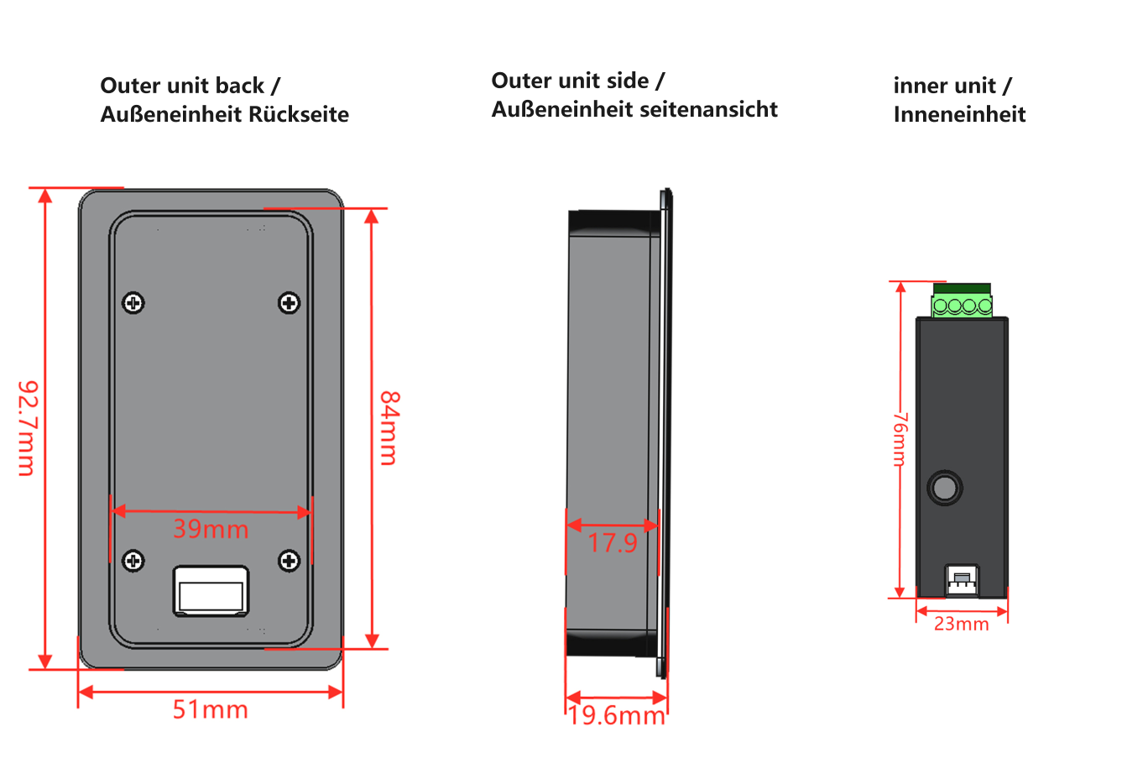

3. Product dimensions

4. Milling Drawing

Only printed on A4 paper,the ratio is 1:1 ,otherwise, it is disproportionate.

5. Mounting & Wiring

 5.1 Mounting

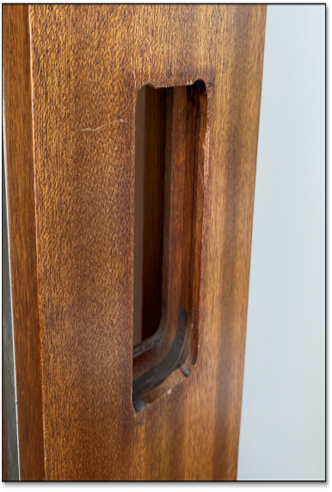

First, mill the hole in the mounting area of the wall or door leaf.

Then, thread the cable through the milled hole. Afterwards you can connect the
connection cable with the outdoor unit. Now you can also connect the other end of the  cable with the indoor unit. Make sure that the indoor unit is not accessible from the
outside (e.g. by pulling out the cables).

5.2 Wiring Relay (Indoor Unit) with Door Opener

You can now wire the indoor unit (relay) to the door opener and the power supply.

ATTENTION: Make sure to carry out an electrical test and confirm that the device is

working properly. Check that the Unilock is powered and perform a test opening. Check whether the door opener opens.

Note: If the unit is in the factory setting, you can enter the code "123456" on the keypad and confirm by pressing the "✓" in order to perform a test opening.

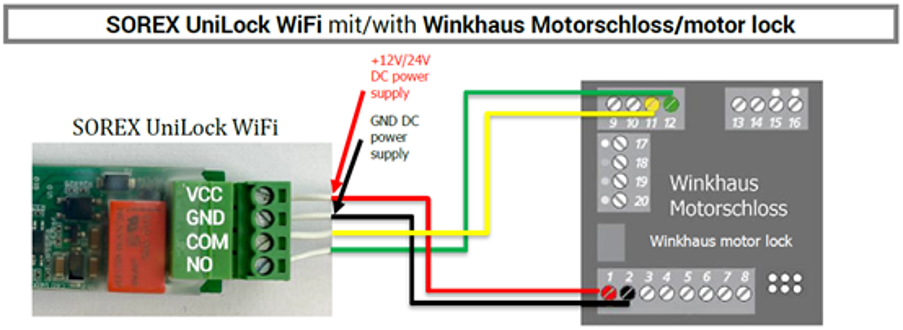

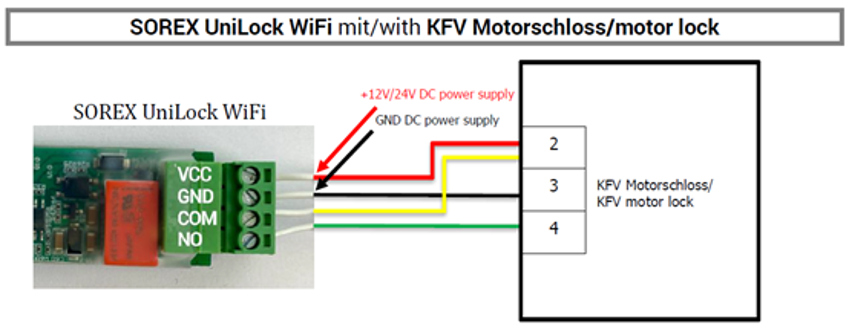

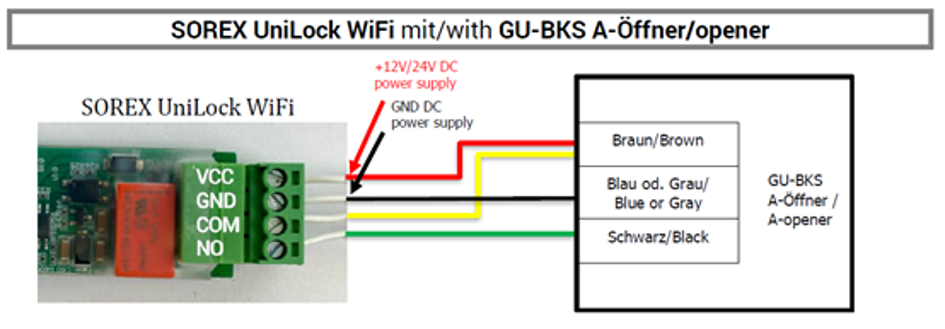

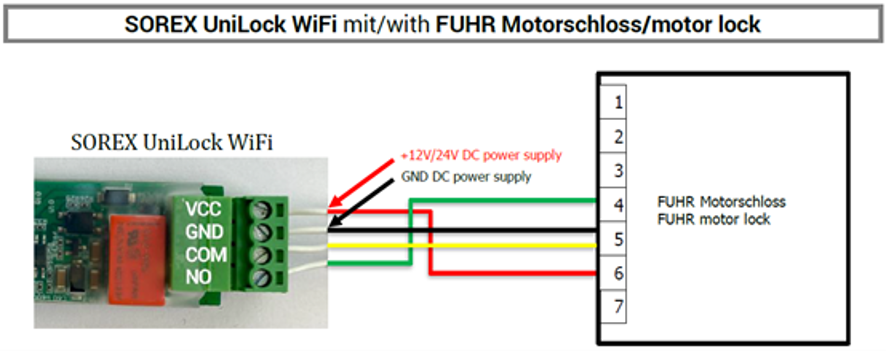

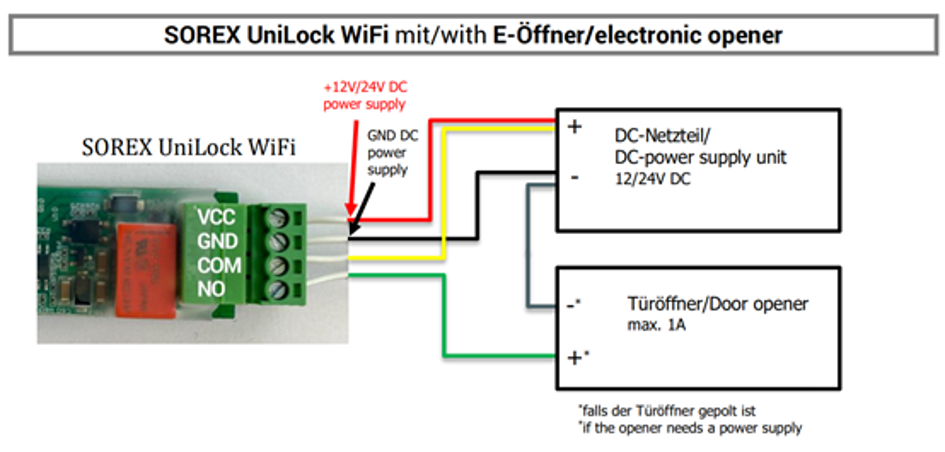

More wiring variants:

5.3  Finishing the installation

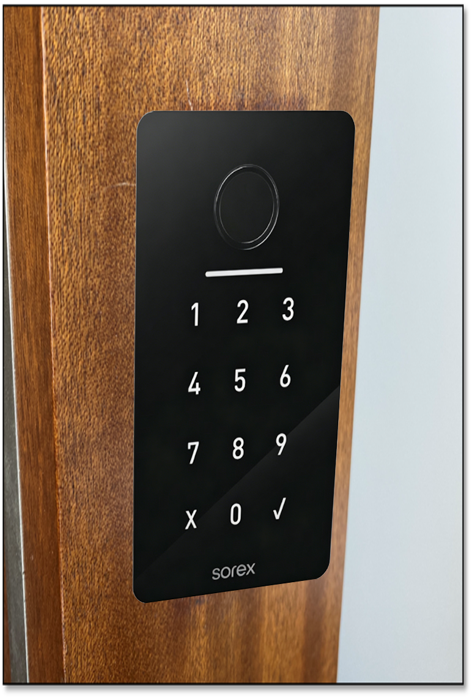

Provided the previous tests were successful, you can now finish the installation. To do so, peel off the protective film of the double-sided adhesive tape on the Unilock and stick it into its desired mounting location.

After gluing the smart unilock 3.0 in place, be sure to check that it is waterproof.

You can test this by carefully running water over the unit. Then check whether there is
water behind the device. If this is the case, firmly press the unit against the mounting

area again and give the adhesive glue some more time before carrying out another water test.

If water is still behind the device after another water test, you can additionally apply
silicone around the glass plate.

6. Add UNILOCK 3.0 via the APP

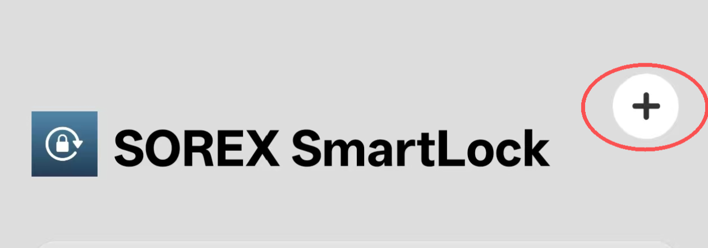

First,open SOREX APP,and touch the "+" icon on the top right of the screen.

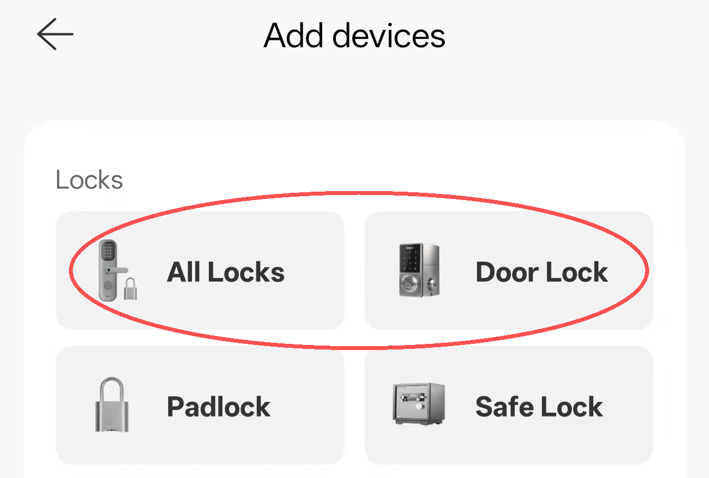

 Second,Select "Locks".Select "All Locks" or  "Door Lock"

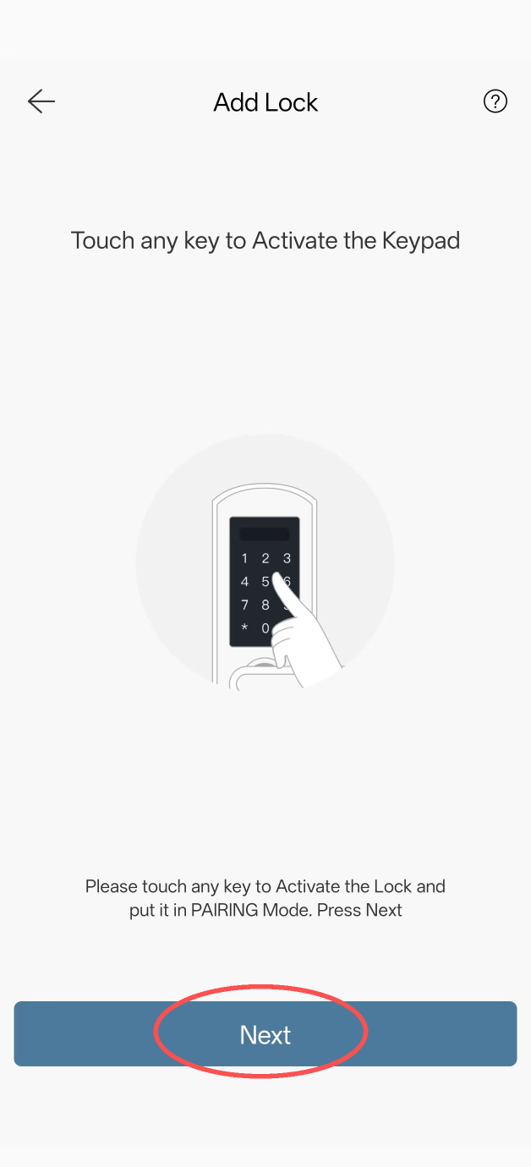

Third,Touch any key to activate the keypad, then tap “Next”.

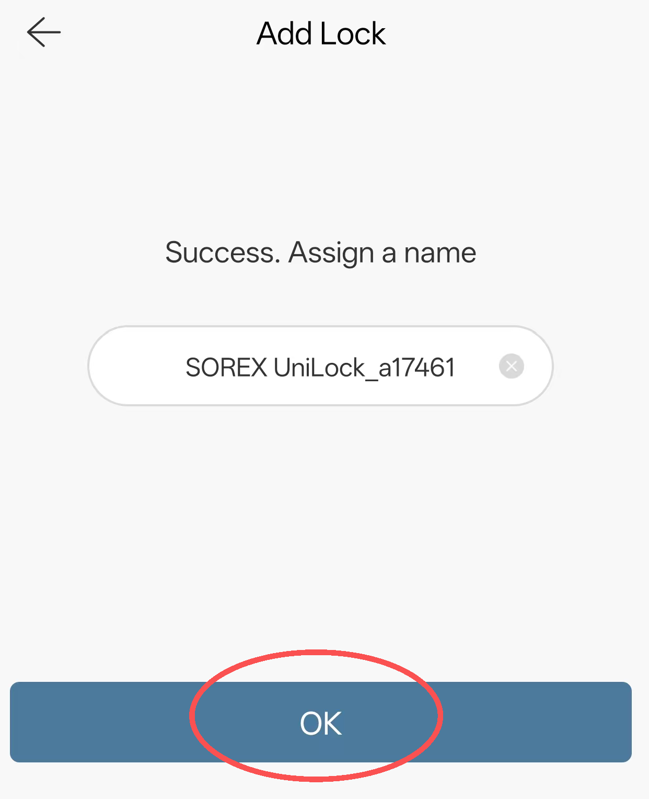

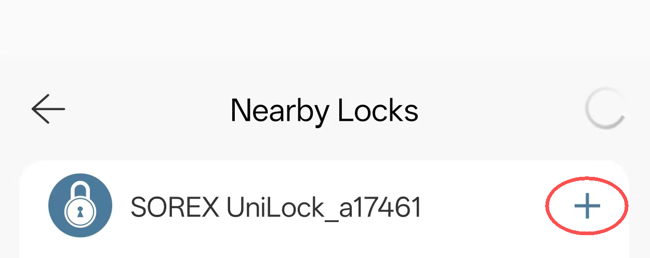

Fourth,Tap the“+” button for the corresponding device,and rename the device.

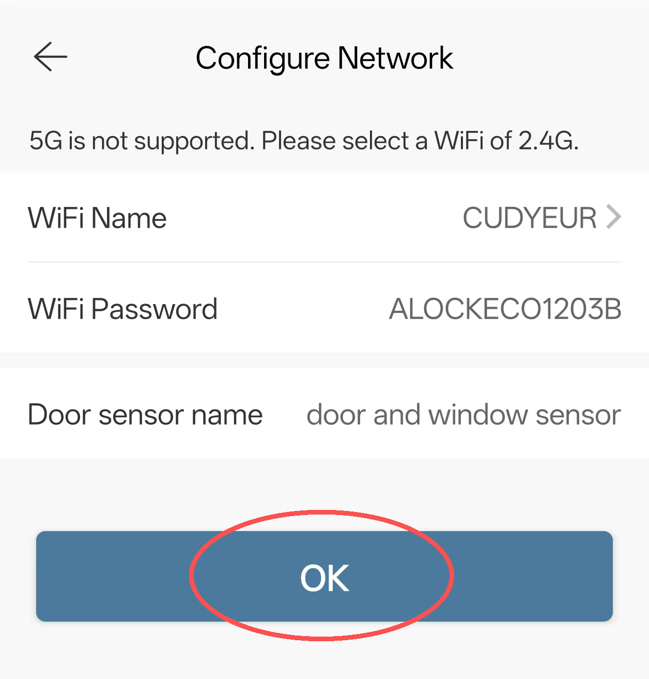

 At last, enter valid WiFi credentials, and complete the device setup.

NOTICE: 5G WiFi networks are not supported. Please select a 2.4G WiFinetwork for  configuration.

*If the device cannot be added, reset the smart unilock 3.0 to factory settings.

7.  Reset

You can reset the SOREX Unilock WiFi in the following two ways:

1. Delete the Unilock from the app (select door handle -> Settings -> "Delete"). You  have to be within range of the unit to do so.

or

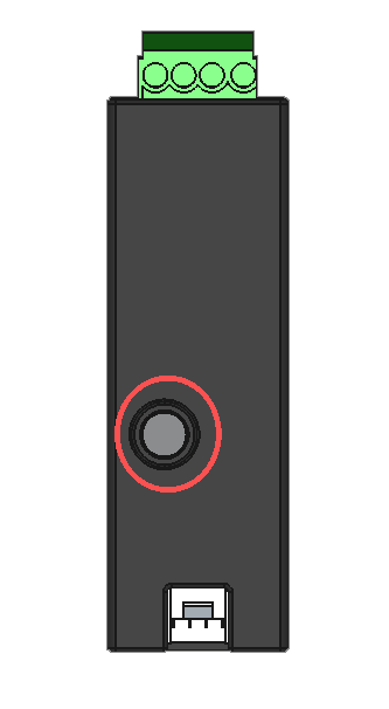

2. Press the reset button on the indoor unit for approx. 3 seconds or until two signal tones are played in quick succession.
