1. Package Contents

The package contains:

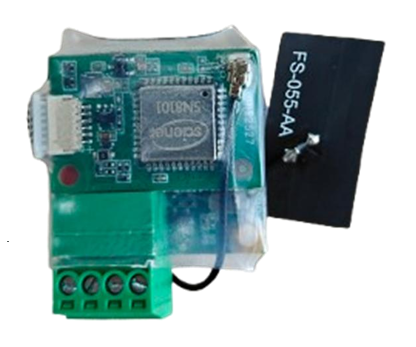

Unilock LITE

2. Technical Data

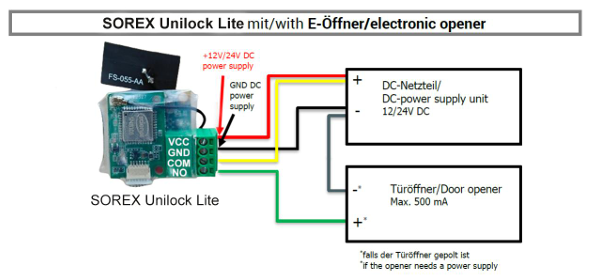

3. Wiring Relay with Door Opener

You can now connect the indoor unit (relay) to the door opener and the power supply
.

Attention: Please ensure that you perform an electrical test and
confirm that the device is functioning properly. Check whether the Unilock
is activated and perform a test opening. Verify whether the door opener
opens.


4. Smartphone App

4.1 Installation

Search in the Google Play Store or Apple Store for the app "SOREX SmartLock".

Or scan the following QR code:


4.2 Registration

Register with your email address or phone number. This is  important so that you can restore access to your SOREX Unilock Lite if you lose your smartphone or password.

4.3 Initial Setup

Optionally, you can first press the reset button on the indoor unit for about 3 seconds or until two signal tones  are played quickly one after the other. This step is not mandatory but ensures that the device is reset.

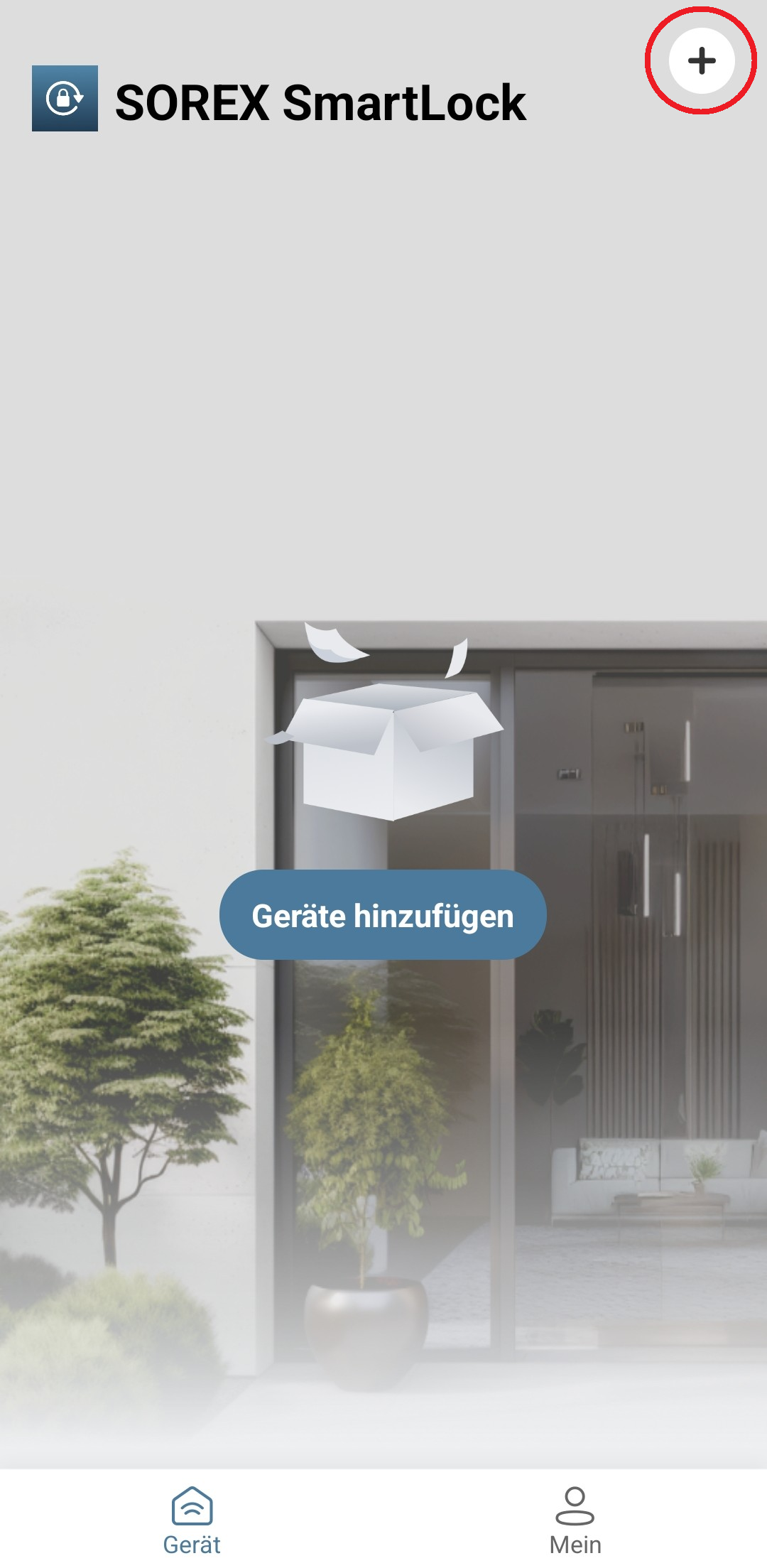

To add the lock, first click on the main page of the SOREX SmartLock app at the top right on the +.

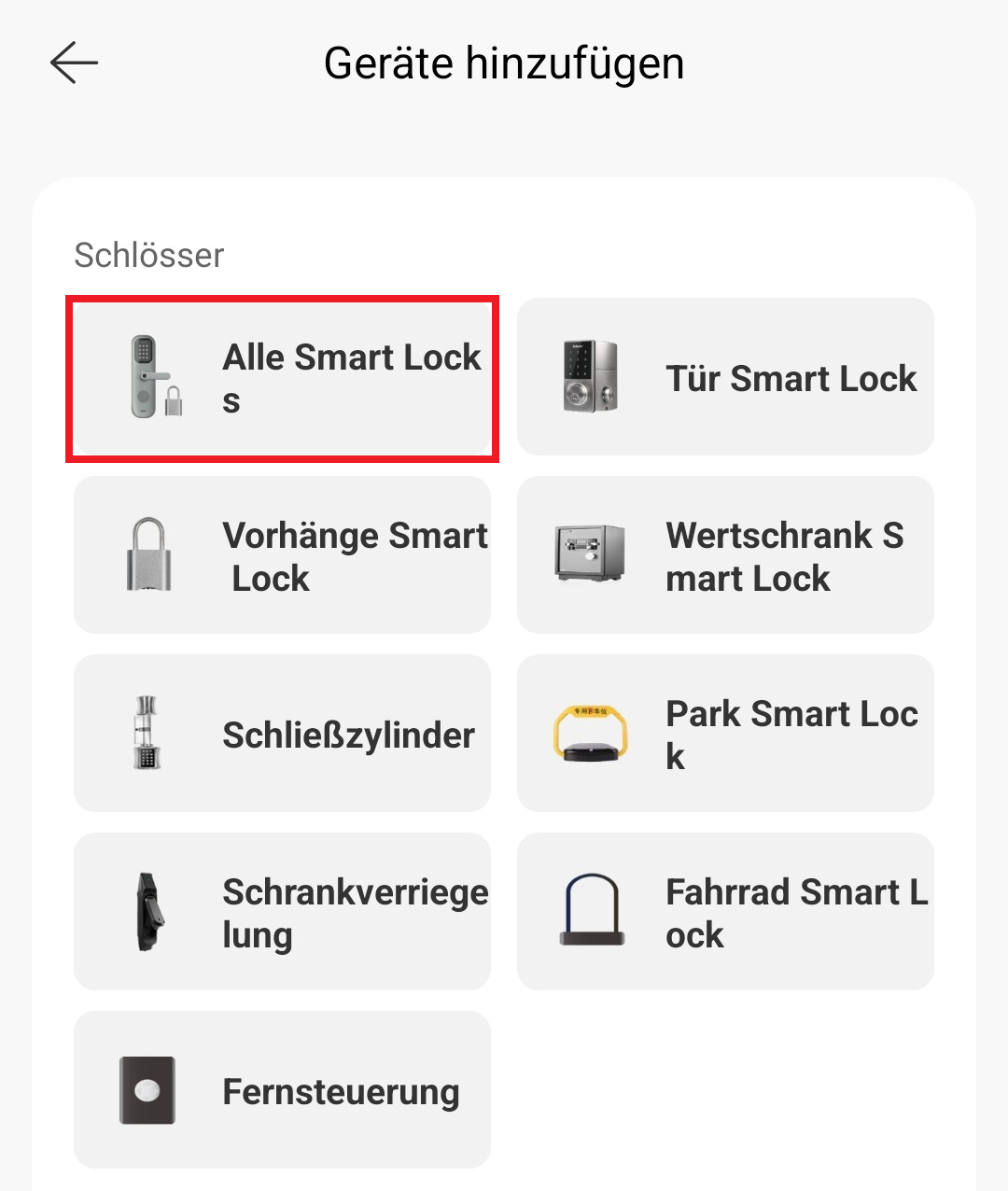

A page will open where you select "All Smart Locks" at the very top.

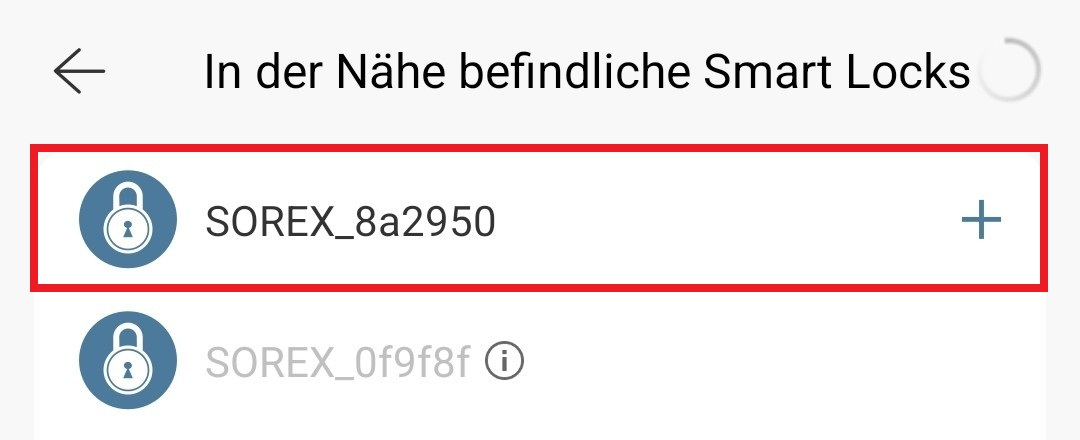

Nearby locks will now be searched for. Please press the found lock.

Attention: To be able to find the lock, you must wake it up by briefly touching the keypad or fingerprint sensor. Also, Bluetooth must be enabled on the smartphone.

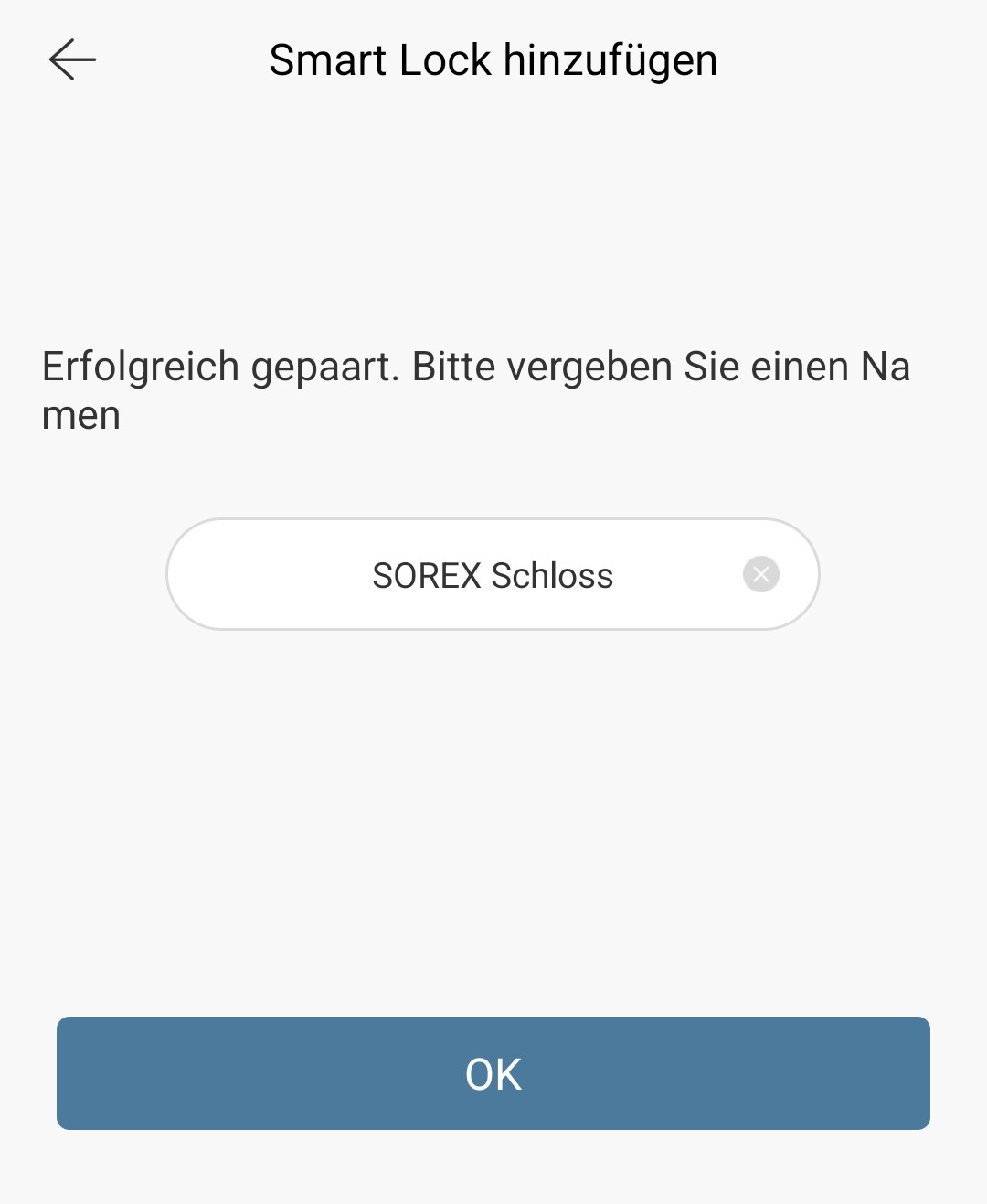

You can now assign a suitable name to your lock and complete the setup.

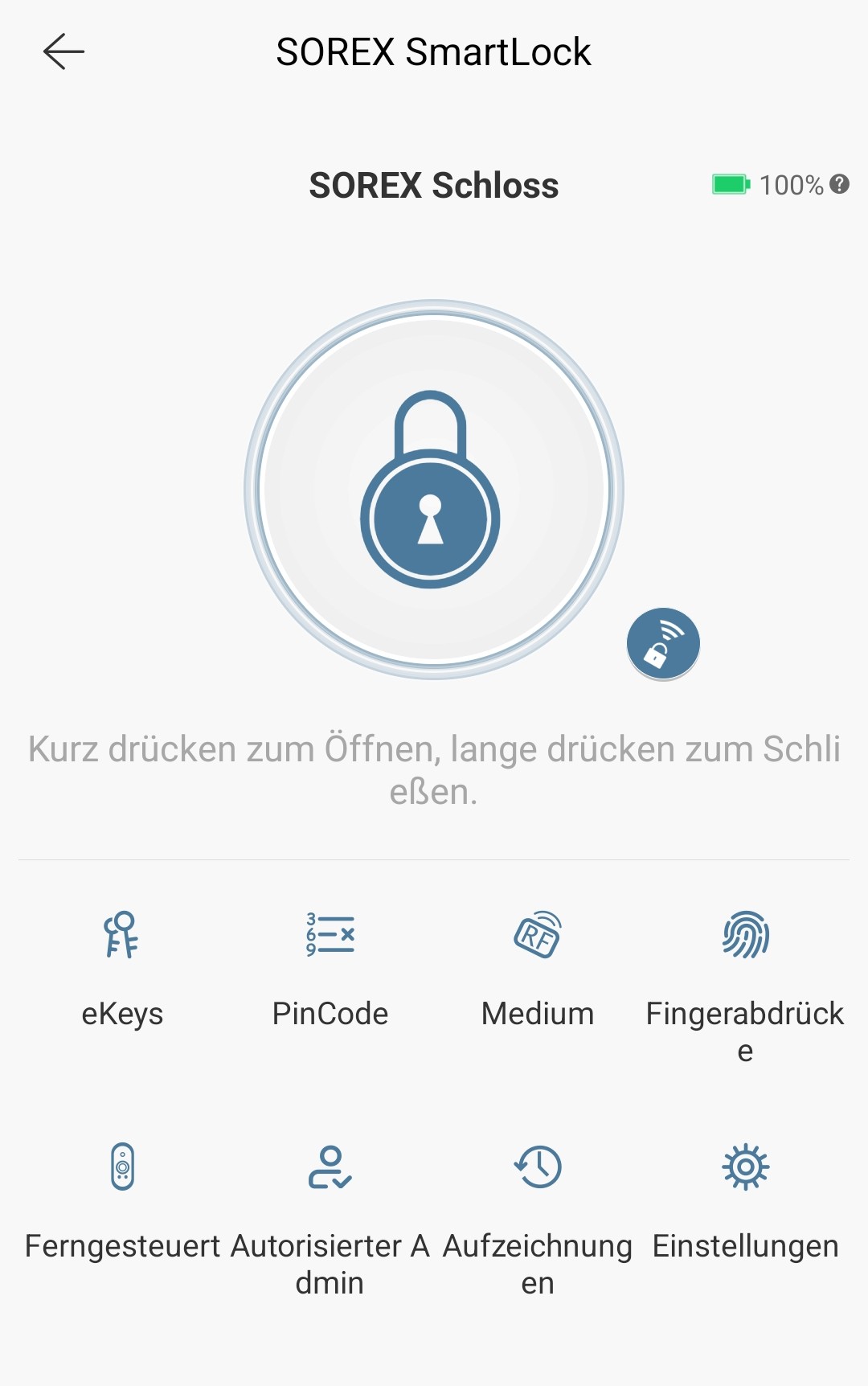

The added lock will now be displayed on the main page of the app. If there are multiple locks, a list view is shown where you can get a detailed view by pressing the selected lock.

4.4 Functions

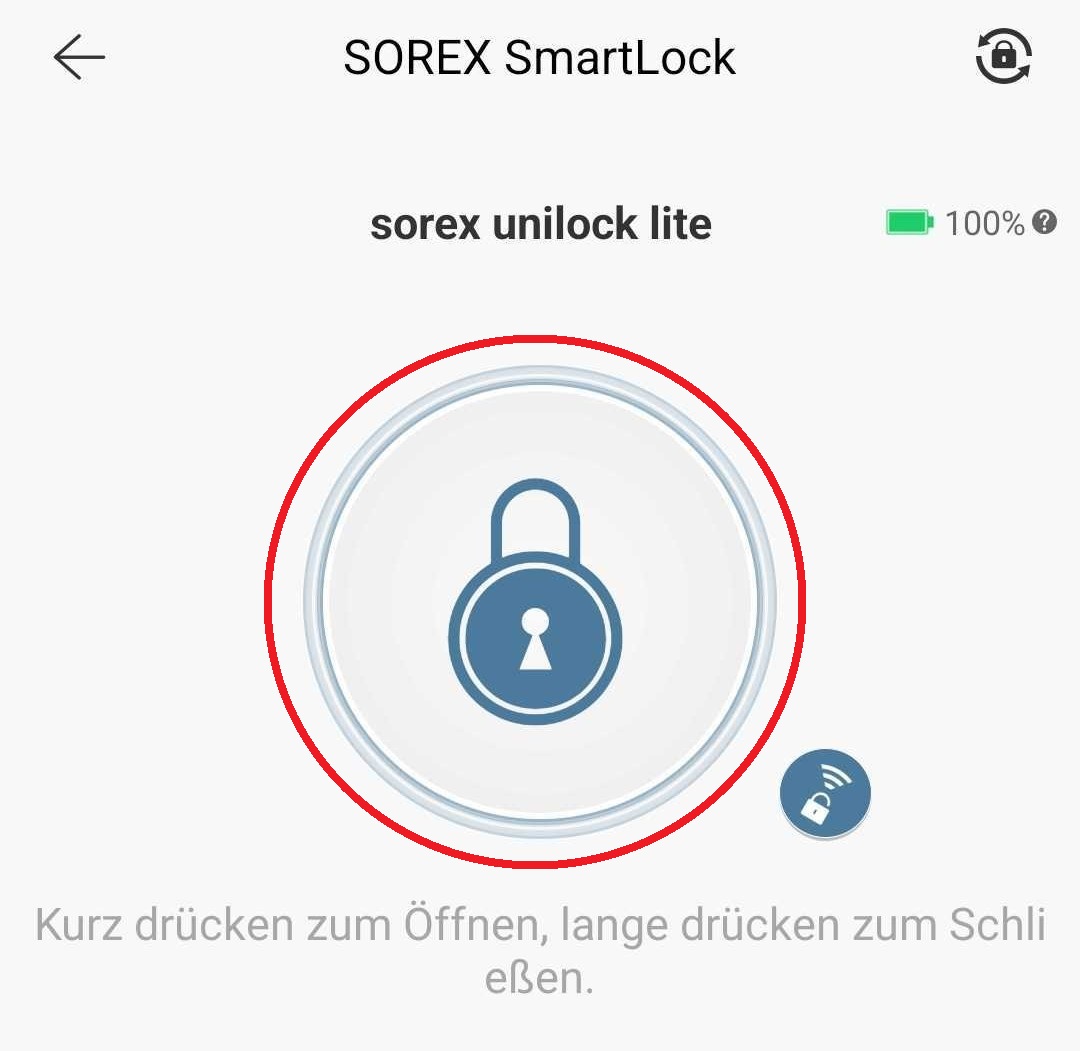

4.4.1 Opening via Bluetooth



By tapping the button, you can unlock the lock with Bluetooth.



4.4.2 Invite Users

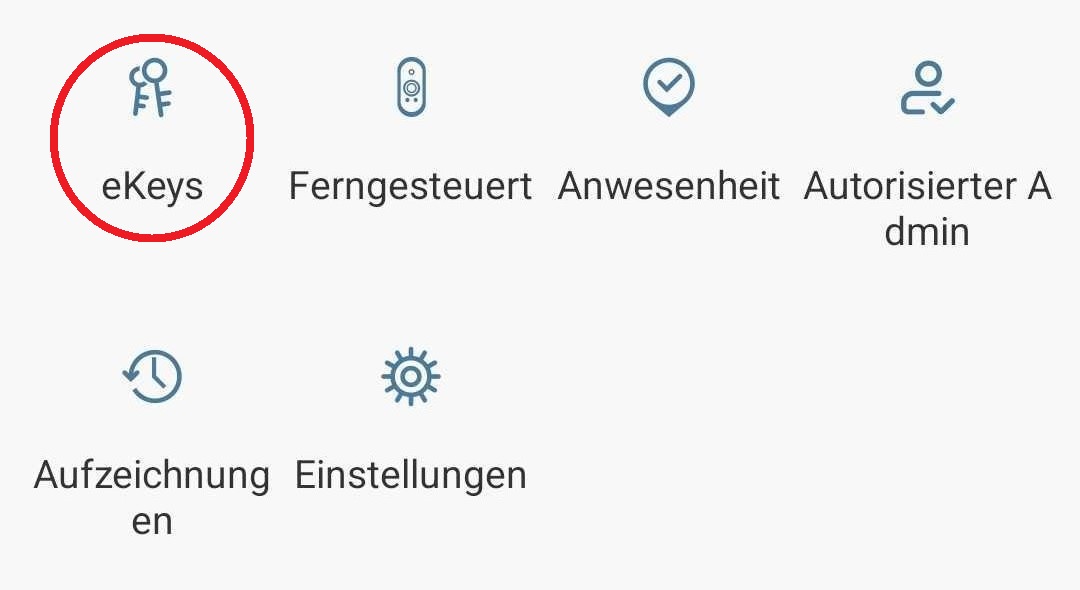

To invite users to the app, first press "eKeys" on the home page.

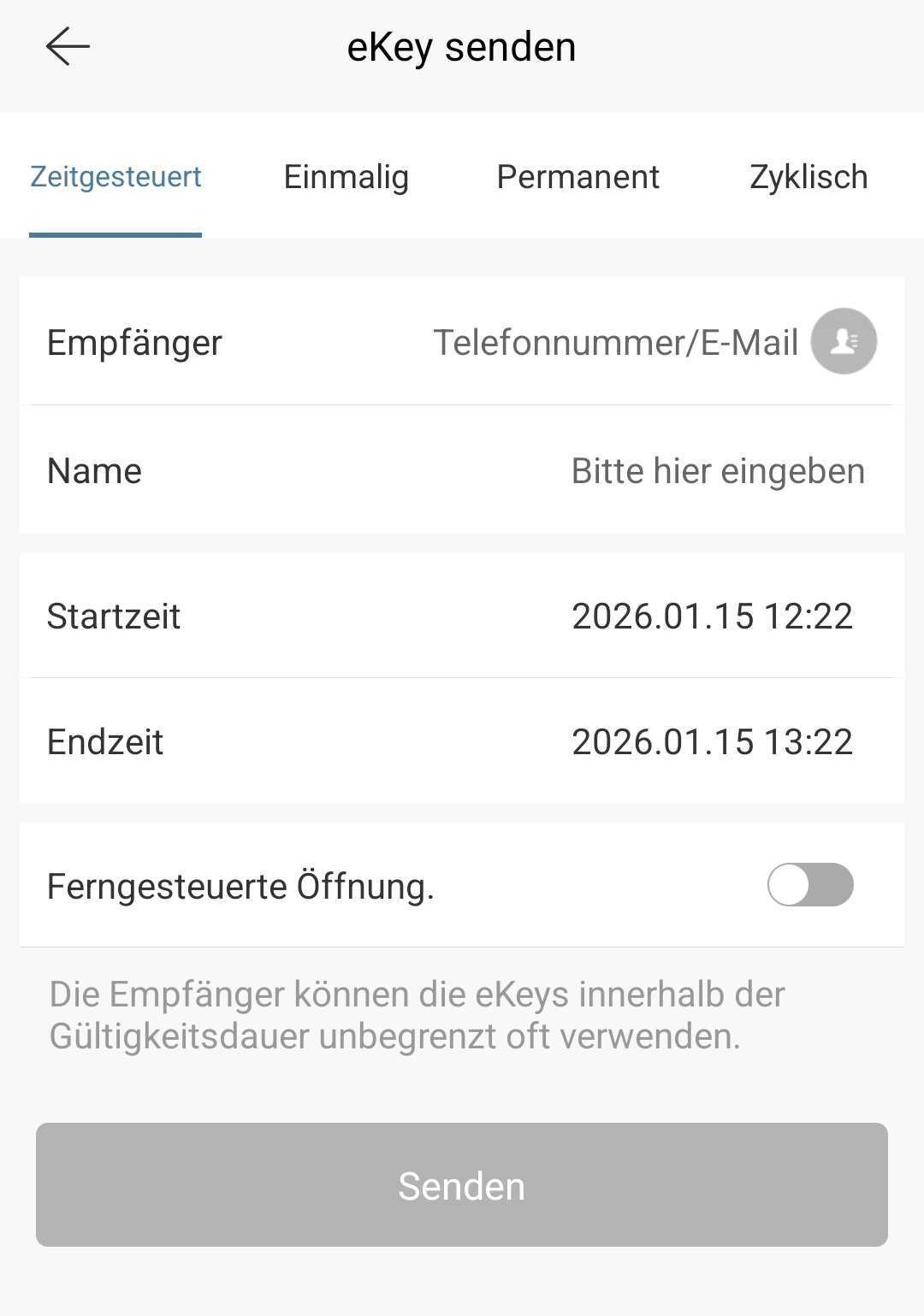

A window appears where you have 4 different options to grant access:
1．Timed: From-To period
2．Permanent: Permanent access
3．One-time: Access valid for a single opening
4．Cyclic: Recurring access, e.g. every week Mon-Fri



You must have the recipient's account (phone number or email). Additionally, you can specify further information such as the period during which access should be valid. Finally, press "Send" to send the invitation.


Note: With the option "Remote Opening", you can specify whether the user is allowed to open the lock via WiFi as well.

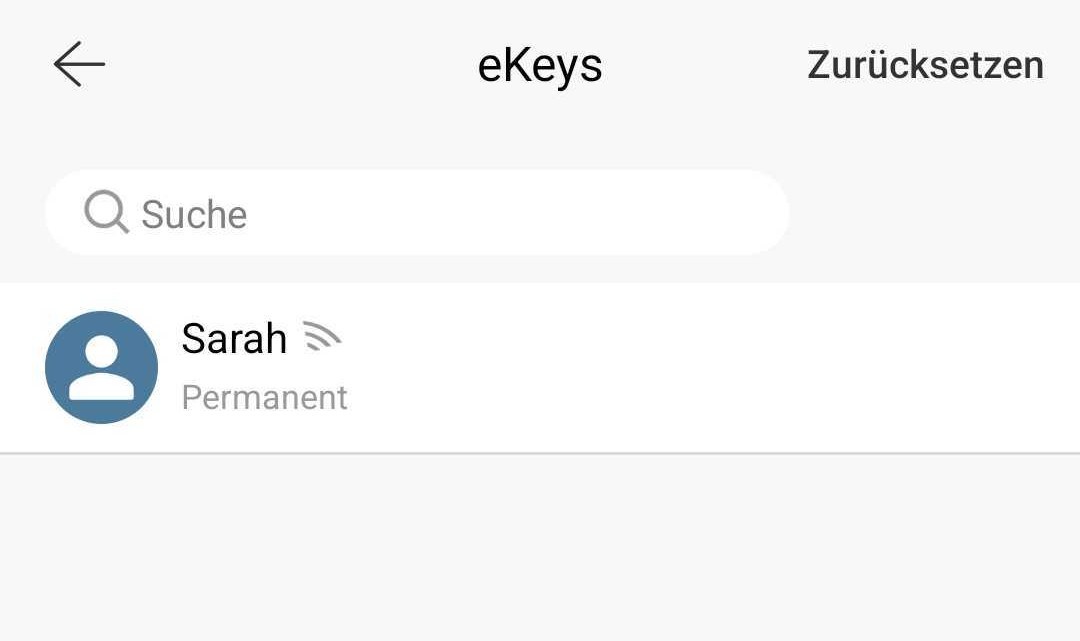

4.4.3 Remove Users

To remove users, click on "eKeys" and select the user you want to remove.

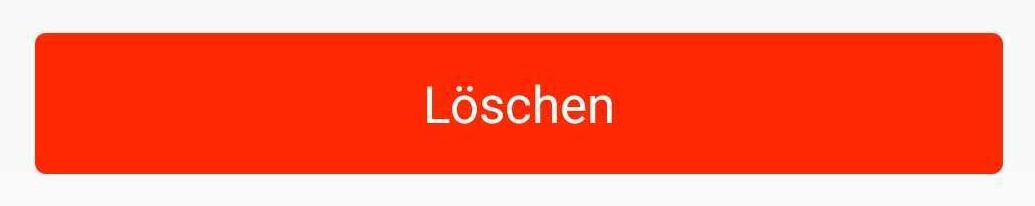

A window with user information opens. To delete the user, press the red "Delete" button.




4.5 Records

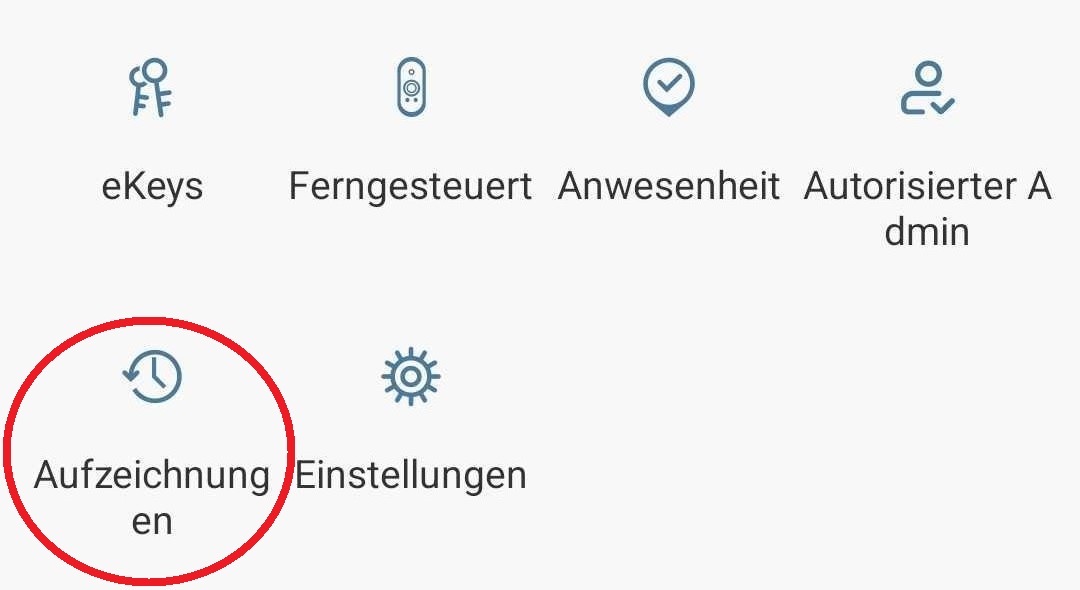

All operations performed by the lock are listed under "Records". Furthermore, the data records can be deleted or exported here.




4.6 Opening via WIFI



You can now open your lock from anywhere. You are no longer limited to Bluetooth range, provided there is an active WLAN connection.

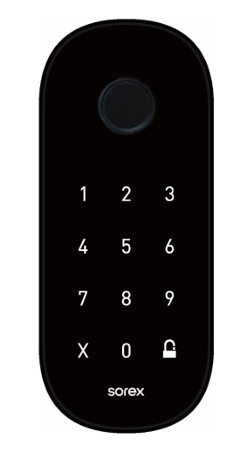

5. Add codepad max


You can add the codepad max in the SOREX app. After successful setup, the Unilock Lite can be conveniently unlocked via the codepad max.

Please note that the codepad max must be purchased separately.

Further information on installation and setup can be found in the associated codepad max user manual.


6. Reset


You can reset the SOREX Unilock Lite in two ways:
1. Delete the Unilock from the app (select the lock -> "Settings" -> "Delete").
You must be within Bluetooth range of the unit to do this.
or
2. Press the reset button on the indoor unit for about 3 seconds until two signal tones
are played one after the other.
