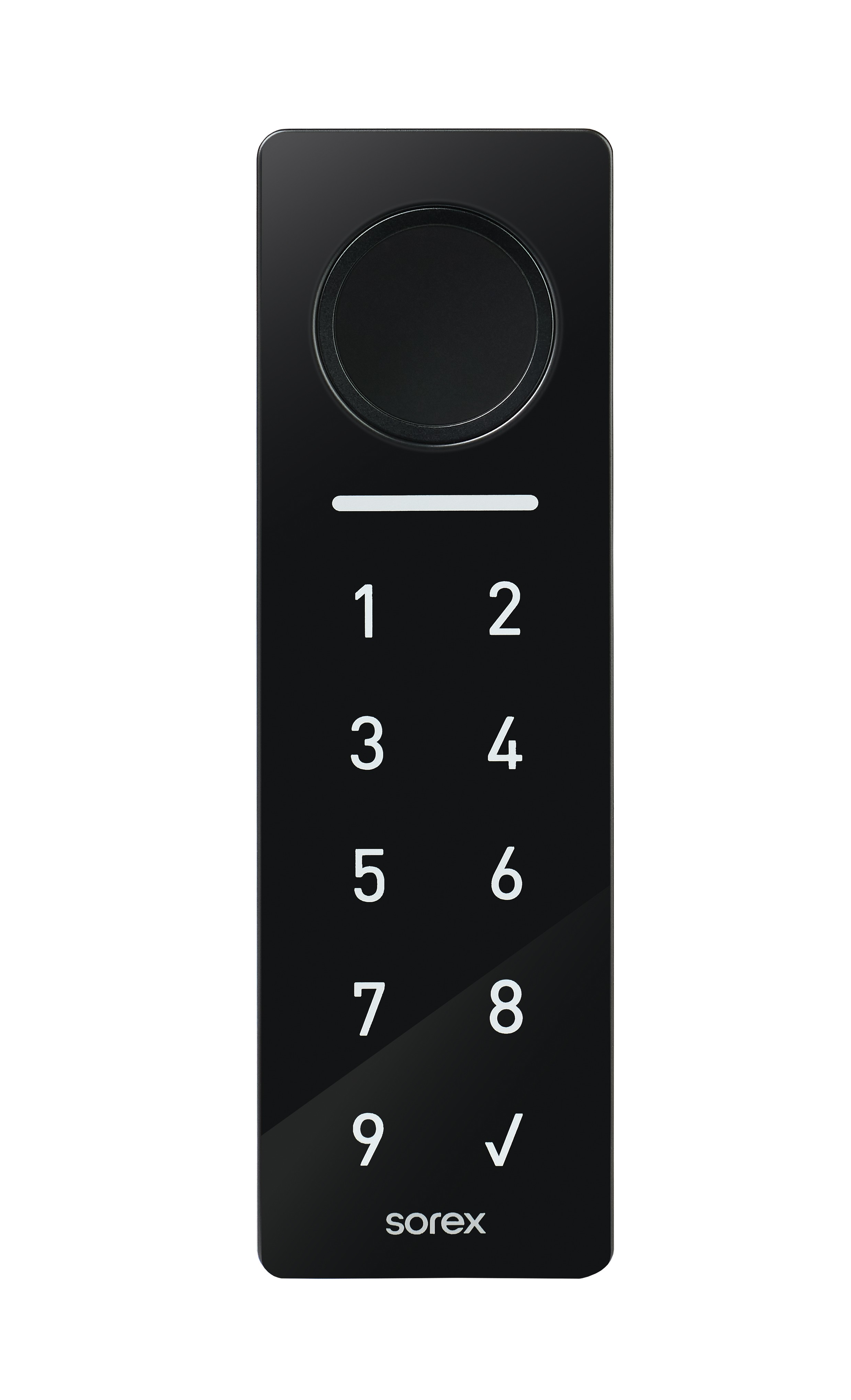

SOREX smart Unilock Mini 2.0
Operating Manual
5.2 Wiring of Relay (Indoor Unit) with Door Opener
5.2.1 Other Wiring Variants (Motorized Locks)
5.3 Completion of Installation
1. Scope of Delivery
The package includes:
- Unilock Mini 2.0 Outdoor Unit
- Unilock Indoor/Relay Unit and a plug-in screw terminal for connecting with an electric door opener and power supply
- Connecting cable between the outdoor and indoor unit
- (Optional) 3-meter extension cable
2. Technical Data
| Article Number | WRULM20111 |
| EAN | 0093149093156 |
| Encryption | AES 128Bit |
| IP Rating | IP55 |
| Frequency | 2.4 GHz |
| Temperature Range | -30°C to 60°C |
| Power Supply | 12/24V DC; 0.5A |
| Effective Current Consumption | ~600 μA in Standby |
| Relay | 1A switching current / 30V switching voltage |
| Number of Access Media | 100 Fingerprints, 150 Numeric Codes, 1000 RFID Media, Unlimited eKeys |
| Storage of Access Media | Permanent, even during power failure |
| Dimensions | Width: 77.5 mm, Length: 24.0 mm, Height: 16.0 mm |
| Weight | 142 g |
| Compatibility | Compatible with all common motorized locks like KFV, ROTO, GU, Fuhr, Wilka, Dom, … |
| Special feature | External relay for sabotage protection (Inside unit) |
2.1 Fingerprint Sensor Data
| Lifetime | ~100.000 Scans |
| FAR (False Acceptance Rate) | <0,001% |
| FRR (False Rejection Rate) | <1% |
3. Product Dimensions
4. Milling Plan
(Dimensions in mm – not to scale)
Overall Depth: 16 mm
Installation Depth: 14.7 mm
5. Installation / Wiring
5.1 Installation
- First, mill a hole at the location where the device is to be installed.
- Next, thread the cable through the milled hole.
- Then, connect the cable to the Unilock Mini 2.0 Outdoor Unit.
- In the interior, connect the other end of the connecting cable to the Unilock Indoor Unit.
- Ensure that the indoor unit is never accessible from the outside (for example, by pulling the cable out).
5.2 Wiring of Relay (Indoor Unit) with Door Opener
You can now wire the indoor unit (relay) to the door opener and the power supply
WARNING:
Perform an electrical test and verify that the device is functioning. Check that the Unilock is supplied with power and conduct a test opening. Ensure that the door opener is activated.
Note:
If the device is in its factory state, you can enter the numeric code “123456” on the keypad and confirm it by pressing the “checkmark/bell” to conduct a test opening. This general code verifies the overall functionality of the Unilock.
5.2.1 Other Wiring Variants (Motorized Locks)
5.3 Completion of Installation
Once the preceding tests are successful, you can complete the installation.
Remove the protective film from the adhesive tape on the Unilock and adhere it to the intended mounting location.
Additionally, after mounting the Unilock, check that the adhesion is waterproof. You can test this by carefully running water over the device and then checking to see if water has penetrated behind it. If water is detected, press the device firmly against the mounting surface again and allow the adhesive more time to set before testing with water again.
If water still passes behind the device during a subsequent test, you may additionally apply a silicone seal around the glass plate.
6. Reset to Factory Settings
You can reset the SOREX smart Unilock Mini 2.0 in one of two ways:
-
Via the App:
Delete the Unilock from the app (select the Unilock -> Settings -> “Delete”). You must be within range of the device. -
Via the Reset Button:
Press the reset button on the indoor unit for about 3 seconds or until two quick signal tones are emitted.
7. Smartphone App
The SOREX smart Unilock Mini 2.0 is managed and controlled through our SOREX SmartLock app.
Search for “SOREX Smart Lock” in the Google Play Store or Apple App Store and install the app.
